Open Source GTM32PRO VD

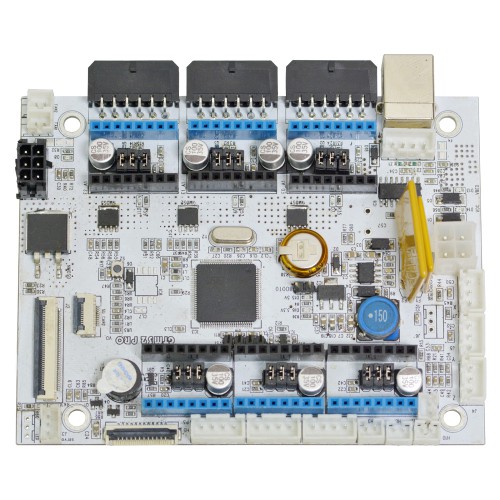

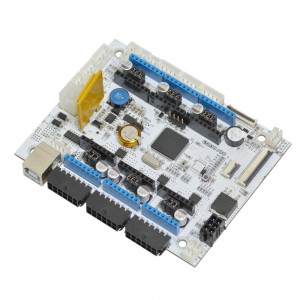

GTM32 series control board is fully self-developed, open source control board by Geeetech for high-performance 3D printers. It keeps Geeetech’s uniformly optimized interface specifications, easy to assemble and with compact layout, high integration and high performance.
GTM32 series control board (hereinafter referred to as the control board) adopts the current mainstream high-performance Cortex M3 core chip STM32F103, with its running frequency of up to 72MHz.The control board supports up to 6 stepper motors, namely, XYZ axis motors and 3 extruders. Users can replace the driving modules, such as A4988 and TMC2208 modules, according to their own needs. Besides, it employs the high performance USB serial chip CH340, which enables users to manipulate the control board via USB cable. Its output voltage is12V /24V.
2. Features of GTM32
a. Adopting high-performance Cortex M3 core chip STM32F103, with its running frequency of up to 72MHz.
b. Using high-performance USN serial chip CH340, compatible with Windows, OS X, Linux etc. mainstream operation system.
c. The output voltage of GTM32 series control board is 12V/24V. It is characterized by dual power supply design, powering up the hotbed and other electronic components respectively.
d. The main circuit adopts in-line fuse, with overcurrent protection and reverse protection. The USB power supply interface has a restorable fuse, with its current at 500mA.
e. The control board features three interfaces for PWM fans.
f. Supporting up to 6 stepper motors, namely, XYZ axis motor and 3 extruder. The common use of stepper motor drivers are A4988 and TMC2208.
g. Supporting max 3 temp sensor for extruder
h. The control board comes with expansion interfaces for LCD display and SD card, supporting stand-alone printing.
I Supporting filament runout sensor
J Supporting break and resume printing.
TOP
Is this the board used on the A30T?
Hi, no, A30T uses Smartto board
Is this the board used on the A30 pro?
no, A30 PRO uses smartto MB board, 700-001-1278. it is not listed on the store, if you want to buy it, you can order this and leave a comment for your order you need A30 PRO smartto board 700-001-1278
Is there a wiring diagram for this board? I can only seem to find the VB wiring diagram.
hello, yes, you can send email to technical@geeetech.com or sales@geeetech.com
hello, yes, you can send email to technical@geeetech.com or sales@geeetech.com
for driving module 8825 which jumpers need removed?
I need to add on my 3d printer A30 a second extruder. I can replace the gtm32 mini control board with gtm32 pro,but i don't found the firnware for this control board to install in my a30.I trust in your help
hello, if know how to uprade, this will be good, but the firmware not availalbe now as a30m is testing
