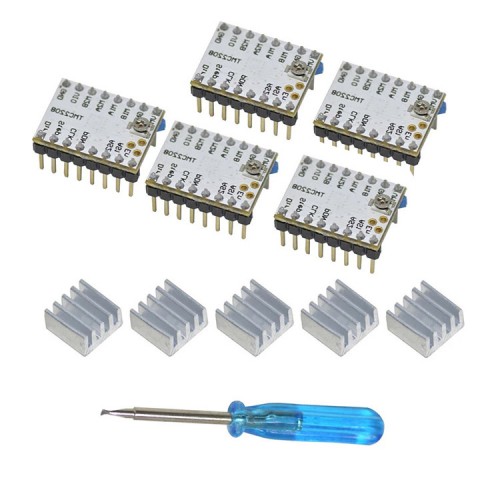

TMC2208 is a single-axis，ultra-quiet stepping motor driver chip, power tube built-in drive current 1.4A peak current 2A, voltage range 4.75V-36V, 256 subdivision.StealthChop2 - faster motor acceleration/deceleration than stealthChop.Automatic stealthChop and spreadCycle switchover depending on the velocity
UART configuration interface (9600...500k Baud)，flexible microPlyer interpolation unit provides up to 256 subdivisions, allowing perfect sinusoidal control even in systems with limited pulse frequencies; faster motor acceleration/deceleration than stealthChop, these are also designed because stealthChop2 ultra-quiet technology is widely applied to 3D printing.
This TMC2208 Stempstick can replace the original TMC2100 A4988 DRV8825 LV8729.Plug and play, no wiring required.
TOP
3 questions:_br_I want to upgrade my A10T with GT2560 V4.0 Board_br_1. Is it plug and play with only changing the directions of the stepper motors and number of steps?_br_2. Can UART be used with this board (I'm on Marlin 2, later changing to Klipper)?_br_3. Can you please add a 6pcs option to the shop for the A10T owners?
Hello, This driver is plug-and-play, but the compatibility issue must be considered. Different motherboards have different drivers and cannot be adapted.
Hi Sebastian, You can comparison this driver and your Original binding control board are consistent? if them are the same, you can purchase the driver. thanks for your support, have a nice day.
You are writing in the description of the driver that I can have plug and play compatibility with my A10 GT2560 V4.0 control board to use UART, is this correct?_br__br_I will compile my own marlin firmware when the drivers are changed._br_Where does the stock firmware work with uart also?
Funciona para placa gt2560_V4.0 de A10M?
It fits your printer.
Hi, will these work on a Geeetech A20T board? Thanks
Is your printer control panel model 4.0? It can only be used on 4.0 control boards.
Will these work on a A30 Pro board, if not which replacement ones do I need to order? Thanks
Hello, you can buy directly!
Bonjour j ai acheté ces drivers pouvez-vous me dire qu elle tension régler pour le vref XYZ er extrudeur merci la Geetech A20M est une super machine _br_Cordialement _br_Patrick
If you assemble TMC 2208 drivers , do not need change firmware , but When install the driver , the driver direction need to be opposite from before A4988 direction, and also need change the line sequence of the motor cable at the end of the main board. below video for your reference. generally speaking, do not need adjust voltage, 0.9V-1.2V is ok https://www.youtube.com/watch?v=fmwMq9t-Nxc&t=40s
Hi, can these be used on my M201 that is currently running A4988 drivers with a GTM32 board and will it be any quieter?
yes, it can be used with the GTM32 Board
Do they make a board or can I purchase these silent stepper drivers for a10m with v4.1 board in my printer
hello, V4.1B board is with stepper drivers soldered on it , can not change stepper drivers only. and it can not change into V4.0 board , need use same board as printer originally has .
Will this work on the A10 V4? If so, is there any programing needed or does it just plug in and go?
hello , it can work on A10. do not need change firmware , but When install the driver , the driver direction need to be opposite from before A4988 direction, and also need change the line sequence of the motor line at the end of the main board. https://www.youtube.com/watch?v=fmwMq9t-Nxc&t=40s it can not work on V4.1B board , because the drivers are soldered on the V41.B board , so can not change stepper drivers separately.
