A10M GT2560 V4.1B Control Board, before order pls check which board does your printer has

SKU: 700-001-1324 14 Reviews
$38.40
New Customers
Ship from: CN
CN US
In Stock: Ship in 24 hours
Shipping: $8.31
QTY:
- +
Secure Payment
Multiple payment options
Payment options:
Customer Service Guarantee
DOA Guarantee
7 Days DOA Guarantee:
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Geeetech will make compensation based on the damage situation.
View More
Missing/Wrong Items Guarantee
7 Days Missing/Wrong Items Guarantee:
If you receive a parcel with missing/incorrect/secondary packing items, please contact the merchant within 7days of delivery and provide relevant proof. Geeetech will make compensation based on the damage situation.
View More
Quality Guarantee
Quality Guarantee:
Some of Geeetech items enjoy [Quality Guarantee]. If the item you purchased has quality issues or problems caused by non-users, and enjoys "Quality Guarantee", Geeetech will provide comprehensive after-sale service.
View More
Recommendation
  • $38.40
  • $60.00
  • $38.40
  • $70.00
  • $6.90
  • $49.00
  • $16.90
  • $38.40
  • $38.40
  • $13.90
  • $38.40
  • $36.50
  • $38.40
  • $49.00
  • $35.80
  • $49.00
  • $60.00
  • $38.40
  • $38.40
  • $63.00
  • $49.99
  • $39.00
  • $59.99
  • $6.90
  • $38.40
  • $58.80
  • $12.90
  • $38.40
  • $39.00
  • $38.40
  • $9.80
  • $3.99
  • $8.90
  • $35.99
  • $49.00
  • $70.00
  • $38.40
  • $3.99
  • $39.00
Frequently Bought Together
A10M GT2560 V4.1B Control Board, before order pls check which board does your printer has
$38.40
  • PLA Black 3D Printer Filament 1.75mm 1kg/roll
  • ABS Black 3D Printer Filament 1.75mm 1kg/roll
  • PLA White 3D Printer Filament 1.75mm 1kg/roll
  • PETG Black 3D Printer Filament 1.75mm 1kg/roll
  • PLA Silk Purple 3D Printer Filament 1.75mm 1kg/roll
Total Price
Selected 1 items
Price: $ 38.40
Add to cart
You May Also Like
  • 10 pcs 0.3mm 3D J-Head hotend/E3D extruder Nozzle Drill Cleaner, if you need other size like 0.35mm 0.4mm , pls order this , but write a comment for your order , need 0.35mm drill instead
    $3.50
  • Heatbed Aluminum Plate for A20/A20M/A20T
    $33.90
  • Opto optical Endstop end stop Switch
    $2.00
  • A30 Pro Printer Extruder feeder Kit for 1.75mm filament
    $19.99
  • 2pcs LM8UU Linear Bearings
    $4.80
  • Pneumatic Push Fitting PC4-M8*1.25, Used for A10M A20M A30M, A10T A20T A30T Mix Color 3D Printer, Compatible for Both Hotend and Extruder of These Mix Color Printers
    $3.00
  • A30T Control Panel LCD Touch Screen Display
    $26.00
  • 5pcs * Nozzle for A10M A20M A30M, A10T A20T A30T Printer, 0.4mm nozzle,Screw thread M7
    $9.99
  • $13.00
  • LCD 2004 Screen for A10 A10M A10T with GT2560 V3.1 or V4.0 Board, 2*10 Pin LCD Cable Connector at Backside of the Screen
    $16.00
  • A30M 16 Pin Connector Hotend Group Assembly With Pulley Bracket for Green GTM32_103_V1 Control Board Version
    $49.00
  • Reprap Ramps V1.4 2004 LCD controller with adapter
    $15.00
  • 24V 20A DC power supply for A30
    $36.90
  • 24V 15A DC power supply for A10 A10M A10T A20 A20M A20T
    $30.00
  • Thunder hotend kit with link cable
    $35.90
  • Hollow Filament Spool Holder
    $17.99
  • I3 PRO B Printer S-180-12 12V 15A DC power supply
    $20.00
  • US Version UV Curing Light UV Lights 405nm
    $18.00
  • 4pcs Springs on Heat bed for 3D Printer
    $5.00
  • Alkaid LCD Printer Resin Tank, including assembly tank * 1 and spare FEP Sheet * 1.
    $12.90
Top Selling
  • 1Cubieboard2 standard package
    $70.00
  • 2256M Micro2440 with 3.5?TFT LCD SDK
    $70.00
  • 3A10Pro//A10M/A10T hotend to GT2560 V4.1B Control board link cable
    $9.80
  • 4Cubieboard 1 standard package
    $60.00
  • 5256M Micro2440 with 3.5?TFT LCD SDK
    $60.00
  • Product Info
  • Comments (14)

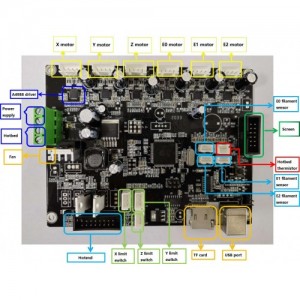

This V4.1B bord can only be a replacement for V4.1B board,  can not replace V4.0 board or other board .

pls check which board does your printer has before order . the board type will be written on the board itself .

need order a same board as your printer originally has. otherwise will not be compatible .

A4988 stepper drivers are soldered on this board.


Here are its main features:

1. Using ATMEGA2560 as its core chip, with its flash memory at 256KB and operating frequency at 16MHz.

2. Compatible with 12V/24V input voltage. Featuring dual power supply, one for powering up the heatbed (15A), the other for other electronic parts (10A).

3. The interface for the heatbed comes with a high-power MOS tube, which is of ultra-low conductive internal resistance. High performance and stable.

4. With 2 interfaces for normally open fans and 1 interface for LED light.

5. Driven by 5pcs A4988 stepper motors for dual extruders.

6. With extension interfaces for LCD display and SD card. Support 2004 and 12864 LCD display.

7. Support 3D touch auto-leveling function and filament detector.

8. Using Marlin firmware, stable and easy to operate.

9. Highly integrated and easy to assemble.



Specifications:

 Net weight: 72g

Gross weight: 113g

login or register to add your words.

  • Dwayne Schermerhorn   |   03/23/2024

      |   reply

    i have the Geeetech A20T Triple Color Mixing what Marlin firmware do i need to install on a gt2560 v4.1b board or is it installed all ready

    • Geeetech Staff   |   03/23/2024

        |   reply

      Dear customer , For questions related to printer technology, you can contact our technical supports mailbox :support@geeetech.com or create a ticket onour official website ,thanks for your consult .


  • Michael Ross   |   06/09/2023

      |   reply

    My board arrived this morning I installed it correctly cable for cable powered up but the display only lit up with nothing else on the screen ,Im tried installing firmware the green light flashed but again nothing but the light on the screen.

    • Geeetech Staff   |   06/12/2023

        |   reply

      Is it possible to update the firmware? Please take a picture of the error report on the screen when the firmware refresh fails. We need this picture to analyze the cause of the failure. Please send pictures to support@geeetech.com


  • Steven Brushett   |   01/06/2023

      |   reply

    I have a a10m with the gt2560 v4.1b is there any way you could update the firmware to autolevel 16 areas instead of 9 and release or link how to do so please _br_

    • Geeetech Staff   |   01/09/2023

        |   reply

      Hi, we have not updated the firmware for the 16 point leveling yet. If you want to update the 16-point leveling, you can update it yourself, because our firmware has been open sourced.

    • Steven Brushett   |   01/30/2023

        |   reply

      Where do i find the files to update? and compile my own for this particulat board

    • Geeetech Staff   |   01/30/2023

        |   reply

      https://github.com/Geeetech3D


  • Milad Youssef   |   04/13/2022

      |   reply

    hello ,I need to change my A 10M Motherboard to be silent stepper drivers _br_the old one is Baud:250000_br_HW Ver : GT2560 V4.1_br_FW Ver : V2.3

    • Geeetech Staff   |   04/13/2022

        |   reply

      hello, you can order this board , but write a comment for your order , need A10M V4.1B board soldered with TMC 2208 drivers instead. instead of checking its version on screen information, pls check your control board under basement directly , to see if it is V4.1B version or not .


  • Daniel Rainer   |   04/09/2022

      |   reply

    Does the 4.1 board have any support for silent stepper drivers?

    • Geeetech Staff   |   04/09/2022

        |   reply

      hello, we have V4.1B board soldered with TMC 2208 drivers . if you need it , you can order V4.1B board on our website , but wrote a comment for your order , need A10M V4.1B board soldered with TMC 2208 drivers instead


  • Guillermo Solis   |   08/07/2021

      |   reply

    Hi, I have an A10M (old model v3.0) and the Control Board is damaged. Can you help me to know if a can replace the Control Board with the new A10M Printer GT2560 V4.1B Control Board? I can use the same LCD? I need anything else to update it? thank you very much
