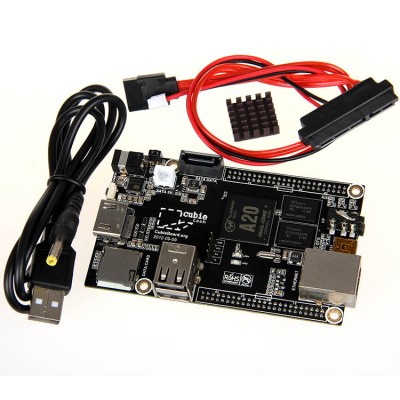

Cubieboard2 is  an upgraded version of Cubieboard 1. Compared with cubieboard1, the Cubieboard2 uses an Allwinner A20 processor which has a dual core CPU and twice GPU performance than A10 . Beside, cubieboard2 also supports Android 4.2 Jelly Bean, Ubuntu 12.04 and other Linux distributions.  Cubieboard2 shares the same PCB with cubieboard1, therefore all the accessories work with cubieboard1 also apply to cubieboard2.

Features

Specifications

• CPU: ARM® Cortex™-A7 Dual-Core
• GPU: ARM® Mali400MP2,Complies with OpenGL ES 2.0/1.1
• Memory: 1GB DDR3 @960M
• Video output: HDMI 1080p display output
• Network: 10/100M Ethernet
• Storage: 4GB internal NAND flash, up to 64GB on uSD slot, up to 2T on 2.5 SATA disk
• IO ports: 2 USB Host, 1 micro SD slot, 1 SATA, 1 IR
• Extended interfaces: 96 extend pin including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP.etc
• Supports systems: Running Android, Ubuntu and other Linux distributions
• Power supply：5VDC/2A power supply with 4.00mm(ext.diameter) x 1.7mm(int.diameter) barrel plug

Packing list
