  • A10 PRO GT2560 V4.0 Control Board, before order pls check which board does your printer has

A10 PRO GT2560 V4.0 Control Board, before order pls check which board does your printer has

SKU: 700-001-1268 20 Reviews
$38.40
New Customers
Ship from: CN
CN US
In Stock: Ship in 24 hours
Shipping: $8.59
QTY:
- +
Secure Payment
Multiple payment options
Payment options:
Customer Service Guarantee
DOA Guarantee
7 Days DOA Guarantee:
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Geeetech will make compensation based on the damage situation.
View More
Missing/Wrong Items Guarantee
7 Days Missing/Wrong Items Guarantee:
If you receive a parcel with missing/incorrect/secondary packing items, please contact the merchant within 7days of delivery and provide relevant proof. Geeetech will make compensation based on the damage situation.
View More
Quality Guarantee
Quality Guarantee:
Some of Geeetech items enjoy [Quality Guarantee]. If the item you purchased has quality issues or problems caused by non-users, and enjoys "Quality Guarantee", Geeetech will provide comprehensive after-sale service.
View More
Recommendation
  • $70.00
  • $38.40
  • $60.00
  • $38.40
  • $38.40
  • $39.00
  • $12.90
  • $16.90
  • $38.40
  • $38.40
  • $39.00
  • $3.99
  • $6.90
  • $49.00
  • $38.40
  • $60.00
  • $36.50
  • $59.99
  • $49.00
  • $70.00
  • $9.80
  • $39.00
  • $35.99
  • $49.00
  • $49.00
  • $38.40
  • $49.99
  • $35.80
  • $38.40
  • $8.90
  • $38.40
  • $6.90
  • $13.90
  • $38.40
  • $58.80
  • $38.40
  • $3.99
  • $38.40
Frequently Bought Together
A10 PRO GT2560 V4.0 Control Board, before order pls check which board does your printer has
$38.40
  • PLA White 3D Printer Filament 1.75mm 1kg/roll
  • PLA Black 3D Printer Filament 1.75mm 1kg/roll
  • PETG Black 3D Printer Filament 1.75mm 1kg/roll
  • ABS Black 3D Printer Filament 1.75mm 1kg/roll
  • PLA Silk Purple 3D Printer Filament 1.75mm 1kg/roll
Total Price
Selected 1 items
Price: $ 38.40
Add to cart
You May Also Like
  • Borosilicate glass platform 210*210*3mm for A10/A10M/A10T
    $6.90
  • 80x80x15mm Cooling Fan DC 24V with 180mm cable For A30M/T/Pro
    $8.90
  • 24V 20A DC power supply for A30
    $36.90
  • A10 A20 A30 MK8 Extruder feeder Kit for 1.75mm filament
    $10.99
  • Mechanical End Stop Endstop Switch
    $3.00
  • A10M A20M 16 Pin Connector Hotend Group Assembly With Pulley Bracket for GT2560 V4.1B Control Board Version
    $49.00
  • Arduino Touch Button module
    $3.99
  • Geeetech 3D Touch V3.2 Auto Leveling Sensor
    $19.90
  • LCD Screen Cable for A30M/A30 PRO/A30T
    $6.90
  • 2pcs* 4010/DC 24V Cooling Fan for Extruder Hotend/ Control Board/40x40x10mm
    $3.99
  • Car Adapter USB Power
    $2.99
  • Arduino Touch Button module
    $17.00
  • Arduino Touch Button module
    $3.00
  • Arduino Touch Button module
    $3.00
  • 5pcs* MizarM mixed color melt filter
    $22.00
  • Pneumatic Push Fitting PC4-M8*1.25, Used for A10M A20M A30M, A10T A20T A30T Mix Color 3D Printer, Compatible for Both Hotend and Extruder of These Mix Color Printers
    $3.00
  • ABL Auto Leveling Kit for Mizar S Printer
    $26.80
  • Arduino Touch Button module
    $3.99
  • A10T/A10/A10M 12 pin LCD Flat Cable for V4.1B control board
    $6.90
  • Stepper motor 42SHD0217-24BF
    $17.00
Top Selling
  • 1Cubieboard2 standard package
    $70.00
  • 2256M Micro2440 with 3.5?TFT LCD SDK
    $70.00
  • 3A10Pro//A10M/A10T hotend to GT2560 V4.1B Control board link cable
    $9.80
  • 4Cubieboard 1 standard package
    $60.00
  • 5256M Micro2440 with 3.5?TFT LCD SDK
    $60.00
  • Product Info
  • Comments (20)

This V4.0 bord can only be a replacement for V4.0 board . can not replace other board like V4.1B , V3.0 , V3.1 etc .

pls check which board does your printer has before order . the board type will be written on the board itself .

need order a same board as your printer originally has. otherwise will not be compatible .

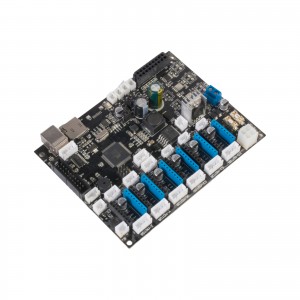

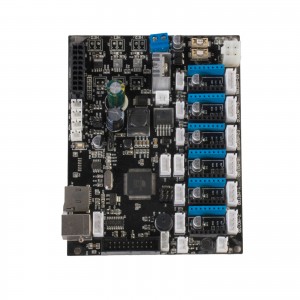

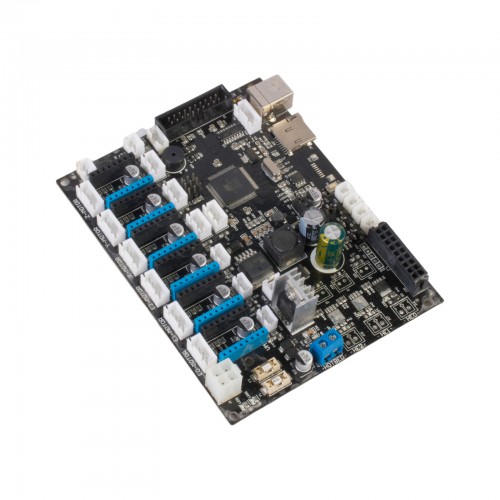

GT2560 V4.0 control board, developed by Geeetech, is currently used for A10, A10M, A20 and A20M 3D printers. Here are its main features:

1. Using ATMEGA2560 as its core chip, with its flash memory at 256KB and operating frequency at 16MHz.

2. Compatible with 12V/24V input voltage. Featuring dual power supply, one for powering up the heatbed (15A), the other for other electronic parts (10A).

3. The interface for the heatbed comes with a high-power MOS tube, which is of ultra-low conductive internal resistance. High performance and stable.

4. With 2 interfaces for normally open fans and 1 interface for LED light.

5. Driven by 4pcs A4988 stepper motors for a single extruder.

6. With extension interfaces for LCD display and SD card. Support 2004 or 12864 LCD display.

7. Support 3D touch auto-leveling function and filament detector.

8. Using Marlin firmware, stable and easy to operate.

9. Highly integrated and easy to assemble.



Specifications:

 Net weight: 72g

Gross weight: 113g

login or register to add your words.

  • Omar Hammad   |   08/14/2023

      |   reply

    How long does it take to arrive to saskatchewan in canada?_br__br_

    • Geeetech Staff   |   08/14/2023

        |   reply

      Normally we will send the accessories out by China post and that will take about 35days to arrive. If you need it urgently, pls select express and that will be faster, it will be delivered in 20day normally.


  • Omar Hammad   |   08/14/2023

      |   reply

    Hi Would this work for the geeetech A10, and does this come with 4pcs of A4988 Motor driver?_br_

    • Geeetech Staff   |   08/14/2023

        |   reply

      Hello, this control board is suitable for A10 V4.0, and the sku including 4 pcs of A4988 motor driver.


  • Damiano Buono   |   05/12/2023

      |   reply

    I launched the update to go from Merlin 1.1.8 to 2.1.2, I only did it to install the bltouch, something went wrong and now nothing works anymore....I own a geeetech A10. Is this card good for my printer? Now mount a gt2560 v4.0 _br_Waiting for the assistance to explain to me if I can fix my card.....

    • Geeetech Staff   |   05/15/2023

        |   reply

      Hello, please send your request to myorder@geeetech.com Our staff will email you the solution.


  • Didier PAULA   |   04/10/2023

      |   reply

    When will my order be shipped and when will I receive it

    • Geeetech Staff   |   04/11/2023

        |   reply

      Hello, your package has been sent out on 10th and will arrive within a week. Please wait patiently.


  • Gonzalo Gregori   |   03/28/2023

      |   reply

    Hi! how long does it take to get the shipment to argentina?

    • Geeetech Staff   |   03/28/2023

        |   reply

      Hi, it takes about forty days.


  • Juan Joly Palomino   |   03/21/2022

      |   reply

    Is there any software for v4 to be able to put the tmc2208 drivers with Bltouch for an A10 printer?

    • Judy YU   |   03/21/2022

        |   reply

      hello 1. if you use 3d touch on A10 printer , need update firmware that support 3d touch, if your control board is V4.0, pls download A10_G05(GT2560V4+CH340), link is https://www.geeetech.com/download.html?download_id=30 2. if you assemble TMC 2208 drivers , do not need change firmware ,  but When install the driver , the driver direction need to be opposite from before A4988 direction, and also need change the line sequence of the motor cable at the end of the main board. https://www.youtube.com/watch?v=fmwMq9t-Nxc&t=40s


  • Hjalti Leifsson   |   08/01/2021

      |   reply

    Does this board have a jumper to set the fan speed, like older versions did?

    • Jocelin Jia   |   08/02/2021

        |   reply

      hello, it does not have the jumper tp set up the fan speed. pls use same board as your printer originally has, V4.0 board will not be compatible.


  • lionel tremolieres   |   07/15/2021

      |   reply

    i have a geeetech a20m. I would like to know if you still have the motherboard A20M_G04 (GT2560 V3.1 + CH340) in stock

    • Jocelin Jia   |   07/16/2021

        |   reply

      hello, yes, we have it , pls send an eamil to sales@geeetech.com


  • Santiago Vari   |   07/06/2021

      |   reply

    I have a Geeetech A10M, will this motherboard work for my printer. Will I have to flash the geeetech a10m firmware?

    • Jocelin Jia   |   07/07/2021

        |   reply

      hello, this is for A10 PRO printer . if you has A10M printer that originally has V4.0 board , pls order 700-001-1269, it is V4.0 board for A10M


  • Robert Schernhammer-Skaret   |   10/29/2020

      |   reply

    Hi. are the stepperdrivers included?

    • Jocelin Jia   |   10/29/2020

        |   reply

      hi, stepper drivers are not included. need order stepper drivers seperately if need them
