Cubieboard 1 standard package
INFO

SKU:800-001-0269

Shipping Weight:200g

$60.00
Qty:
VS
VOTES

Vote for specials.

0 votes

A20M
Product Info Specification Package List

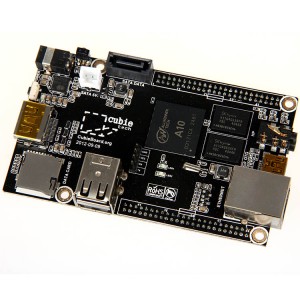

The Cubieboard1 is a mini pc developer platform based on Allwinner A10, Compared with Raspberry Pi, it has a very wide range of IO options. The board is set apart by offering SATA and an extended pin interface for low level access to the SOC.  The new one comes with a case.

  • Features:
  • Allwinner A10 SOC
  • 96 pin extended interface
  • Built-in IR receiver
  • SATA supported
  • Supports 2.4GHz wireless keyboard and mouse
  • CPU: 1G ARM cortex-A8 processor, NEON, VFPv3, 256KB L2 cache
  • GPU: Mali400, OpenGL ES GPU
  • Memory: 1GB DDR3 @480MHz
  • Video output: HDMI 1080p Output
  • Network: 10/100M Ethernet
  • Internal storage：4GB NAND Flash
  • IO ports: 2 USB Host, 1 micro SD slot, 1 SATA, 1 ir
  • Extended interfaces: 96 extend pin including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP
  • Supports systems: Running Android, Ubuntu and other Linux distributions
  • Power supply：5VDC/2A power supply with 4.00mm(ext.diameter) x 1.7mm(int.diameter) barrel plug
  • Size 10cm*6cm
  • Package list:
  • 1 x Cubieboard1 board
  • 1 x USB power cable
  • 1 x SATA cable
    • Comments ( 3 )
    login or register to add your words.

    • IST Elektronik GesmbH Peter MAurer | 11/23/2017

      Hello Please help me!! Order NO:20171030094904271 2017-11-23 13:18 Customs documents/invoice missing; Postcode 7910 very urgent !! haider@ist.at


    • Ric Chin | 09/02/2016

      Is there a wiki for this product?

      • rita xiang | 09/04/2016

        for more detailed information about Cubieboard, please refer to this page http://docs.cubieboard.org/tutorials/cb1/start
