  • New Upgrade Tempered Glass Bed 3D Printer Platform, 235 x 235MM for A10/A10M/A10T/Mizar/Mizar Pro
  • New Upgrade Tempered Glass Bed 3D Printer Platform, 235 x 235MM for A10/A10M/A10T/Mizar/Mizar Pro
  • New Upgrade Tempered Glass Bed 3D Printer Platform, 235 x 235MM for A10/A10M/A10T/Mizar/Mizar Pro
  • New Upgrade Tempered Glass Bed 3D Printer Platform, 235 x 235MM for A10/A10M/A10T/Mizar/Mizar Pro
  • New Upgrade Tempered Glass Bed 3D Printer Platform, 235 x 235MM for A10/A10M/A10T/Mizar/Mizar Pro

New Upgrade Tempered Glass Bed 3D Printer Platform, 235 x 235MM for A10/A10M/A10T/Mizar/Mizar Pro

SKU: 700-001-1085 14 Reviews
$5.90
$33.00
-82%
New Customers
Ship from: CN
CN US
In Stock: Ship in 24 hours
Shipping: $17.43
QTY:
- +
Secure Payment
Multiple payment options
Payment options:
Customer Service Guarantee
DOA Guarantee
7 Days DOA Guarantee:
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Geeetech will make compensation based on the damage situation.
View More
Missing/Wrong Items Guarantee
7 Days Missing/Wrong Items Guarantee:
If you receive a parcel with missing/incorrect/secondary packing items, please contact the merchant within 7days of delivery and provide relevant proof. Geeetech will make compensation based on the damage situation.
View More
Quality Guarantee
Quality Guarantee:
Some of Geeetech items enjoy [Quality Guarantee]. If the item you purchased has quality issues or problems caused by non-users, and enjoys "Quality Guarantee", Geeetech will provide comprehensive after-sale service.
View More
Recommendation
  • $6.90
  • $16.00
  • $38.00
  • $28.99
  • $12.99
  • $11.00
  • $2.00
  • $3.00
  • $15.90
  • $19.90
  • $7.99
  • $19.99
  • $15.99
  • $35.00
  • $7.99
  • $6.90
  • $33.90
  • $33.99
  • $13.80
  • $14.00
  • $6.90
  • $2.00
  • $7.00
  • $35.99
  • $30.99
  • $3.00
  • $39.99
  • $11.00
  • $49.90
  • $28.00
  • $11.90
  • $9.90
  • $26.80
Frequently Bought Together
New Upgrade Tempered Glass Bed 3D Printer Platform, 235 x 235MM for A10/A10M/A10T/Mizar/Mizar Pro
$5.90
  • PLA Black 3D Printer Filament 1.75mm 1kg/roll
  • PLA Silk Purple 3D Printer Filament 1.75mm 1kg/roll
  • ABS Black 3D Printer Filament 1.75mm 1kg/roll
  • PLA White 3D Printer Filament 1.75mm 1kg/roll
  • PETG Black 3D Printer Filament 1.75mm 1kg/roll
Total Price
Selected 1 items
Price: $ 5.90
Add to cart
You May Also Like
  • MK8 Extruder Aluminum feeder Kit for 1.75mm filament, for single extruder printer A10 A20 A30, can not fit A10M A20M A30M A10T A20T A30T
    $11.99
  • LCD Screen Cable for A30M/A30 PRO/A30T
    $6.90
  • 2 piece TMC2208 driver for 3d printer
    $8.90
  • Thunder 3d Printer Hotend
    $22.80
  • Geeetech Spark E3 General Control Board for FDM 3D Printer
    $35.99
  • Thunder hotend to motherboard link cable kit
    $12.99
  • Arduino Touch Button module
    $8.00
  • Thunder hotend kit with link cable
    $35.90
  • A30 Pro Printer Extruder feeder Kit for 1.75mm filament
    $19.99
  • A10/ A10 Pro/ A20/ A30 Pro 24V Printing Head, Single Extruder Hotend, 24V 40W, 110mm long heating rod, for V3.0/ V3.1/ V4.0 board version
    $17.90
  • 35 copper hot bed aluminum substrate 235 (3mm thick)
    $4.99
  • A10T A20T A30T 16 Pin Connector hotend group assembly with pulley bracket for GT2560 V4.1B Version
    $59.00
  • 24V 15A DC power supply for A10 A10M A10T A20 A20M A20T
    $30.00
  • 10 pcs x Rubberized Bearing Pulley
    $14.90
  • 256M Micro2440 with 3.5?TFT LCD SDK
    $70.00
  • Arduino Touch Button module
    $1.99
  • Pneumatic Push Fitting PC4-M8*1.25, Used for A10M A20M A30M, A10T A20T A30T Mix Color 3D Printer, Compatible for Both Hotend and Extruder of These Mix Color Printers
    $3.00
  • Car Adapter USB Power
    $15.00
  • Hotend Motherboard Extruder Circuit Board for Mizar S FDM 3D Printer
    $10.80
  • Arduino Touch Button module
    $3.00
Top Selling
  • 1Geeetech 3D Touch V3.2 Auto Leveling Sensor
    $19.90
  • 2Opto optical Endstop end stop Switch
    $2.00
  • 3Car Adapter USB Power
    $2.00
  • 4Geeetech Filament Detector Module for V4.0 V4.1 control board ve
    $7.99
  • 5Mechanical End Stop Endstop Switch
    $3.00
  • Product Info
  • Comments (14)

if you are going to use the superplate glass to replace the black mylar sticker, one tip need your attention please,  in case of the nozzle touch and scrach the platform:

Because the superplate glass is 3mm thicker  than mylar sticker, After you replace the glass with existing mylar sticker,

pls remember to up the limit switch on Z axis for about 3mm, then do leveling before you start printing and you can also slightly adjust the knob under platform.

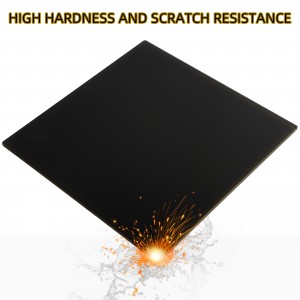

We choose silicon carbide glass with microporous coating as the building platform for 3D printer, without the need of attaching the masking tape.

 The silicon carbide glass is of chemical stability, high heat conductivity coefficient and good wear-resistance and can withstand extreme temperature. The special coating is inorganic and has a hardness of 8 Mohs, hence of high durability.

Compared with common building platform, this kind of tempered glass is of better adhesion and flatness and easy to take prints off. Besides, it is easy to clean with water or alcohol. Geeetech Superplate silicon carbide glass platform is regarded as a reliable building platform by 3D printing hobbyists.

Features:

Better adhesion: Superplate is coated with micropores, having strong adhesion during printing.

High-performance: The silicon carbide glass is of chemical stability, high heat conductivity coefficient and good wear-resistance and can withstand extreme temperature.

Reliability: The special coating is inorganic, with its hardness of 8 Mohs and heat resistance up to 400 .

Easy to clean with water or alcohol.

Easy to remove your print by hand without the help of scraper.







login or register to add your words.

  • David deBoeck   |   12/17/2021

      |   reply

    Can double sided tape be used to fix the plate?

    • Judy YU   |   12/18/2021

        |   reply

      hello , it will be better to use clips to fix it , so you can remove it from heatbed when it get broken or need replaced.


  • James Webb   |   08/05/2021

      |   reply

    Does the home switch need to be moved if using the auto bed leveling sensor

    • Jocelin Jia   |   08/05/2021

        |   reply

      yes, if you use 3d touch auto leveling sensor , pls remove off the Z axis limit switch/endstop


  • Simon Oberacher   |   09/03/2020

      |   reply

    Can I also use this Superplate on my A10T?

    • Jocelin Jia   |   09/03/2020

        |   reply

      hello, yes, it can also be used on your A10T


  • ALLARD Jean Pierre   |   06/22/2020

      |   reply

    Do i need specific things to replace mylar with a Superplate on my A10 ?

    • Jocelin Jia   |   06/23/2020

        |   reply

      hello, just use several clips to fix the glass platform is ok.


  • Russell Phillips   |   03/03/2020

      |   reply

    "pls remember to up the limit switch on Z axis for about 3mm" can you give me some details on this - it does sound like I pysicall move the z limited up a bit - to get the print head close to the glass surface?

    • Jocelin Jia   |   03/06/2020

        |   reply

      hi, yes, it means pysically move the z limit switch for about 3mm if you are going to use the superplate glass to replace the black mylar sticker, because the superplate glass is 3mm thicker than mylar sticker


  • alex hainaut   |   11/27/2019

      |   reply

    Hello, What are the size of Superplate Glass Platform. Is it really better than mylar ? regards

    • Jocelin Jia   |   12/17/2019

        |   reply

      hello, yes, i am sure it is for A10 and A10M printer.

    • Eddy Ukstein   |   12/14/2019

        |   reply

      Are you sure it is for A10? The bed size of A10 is 220x200 and not 235x235

    • Jocelin Jia   |   11/29/2019

        |   reply

      hello, this is for A10/A10M printer, 235mm*235mm*4mm. it depends, some customer prefer glass platform. some likes mylar sticker
