Tmc2209 has all the functions of tmc2208 and can completely replace tmc2208.
At the same time, tmc2209 has better heat dissipation performance, supports larger current, and supports sensorless function.
Product features:
1. Excellent mute effect

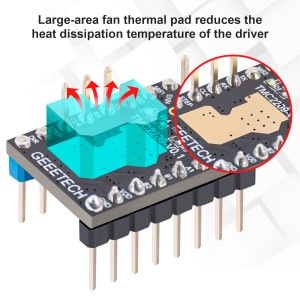

2. Large heat sink, good heat dissipation
3. Support sensorless feedback function.
Notes:
1. Be sure to disconnect the power supply before installing the driver to prevent the driver from burning.
2. Be sure to confirm the direction of the driver before installing the driver to prevent the driver from burning
due to reverse connection.
3. Pay attention to the line sequence and 10 ports when wiring. Wrong wiring will directly cause the driver to
not work. Connect carefully according to the above diagram
4. Do not plug and unplug the driver module with power on to avoid damage.
5. When installing the heat sink, pay attention to the contact between the heat sink and the pin header pins
to prevent the driver from short circuiting.
6. The product is sensitive to static electricity. Please handle it with care when using it. It is best to remove
the packaging before use.
7. Before use, be sure to properly dissipate heat for the driver (heat sink, cooling fan, fan)
8. When measuring voltage, please connect the power supply, not just the USB power supply.
