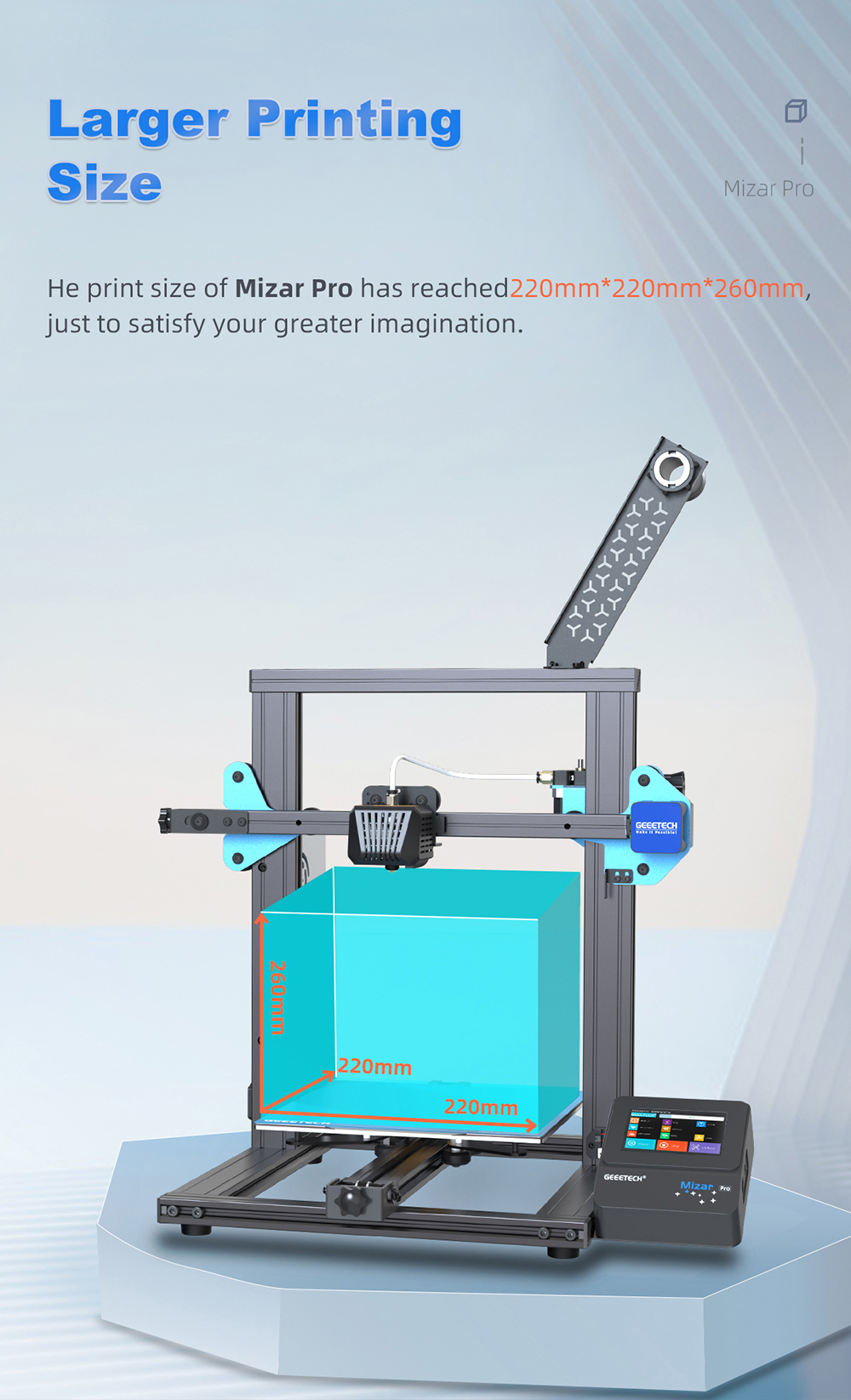

Mizar Pro owns dual leveling technology, its printing accuracy is higher and the hot bed has been fixed, so don't worry about the hot bed being deformed or loosened. Its build volume is 220*220*260mm, and the appearance is more concise and beautiful, which can meet most of your printing needs!
【Precise Auto leveling】GEEETECH Mizar Pro has dual-leveling system, which enables one-button ABL automatic bed leveling technology. It is equipped with a high-precision leveling sensor and no need for external leveling accessories like BL touch.
It also creatively designed MBL manual leveling mode, which is more friendly to beginners, amateurs and specialists.
【Stable Magnetic Platform】The heat bed adopts a fully fixed design, The hot bed can be used for a long time after leveling once with the leveling sensor, do not need frequently leveling the hot bed;The hot bed printing platform adopts the magnetic suction method. Compared with the ordinary magnetic printing platform, the top component of the Mizar Pro printing platform is made of metal material, it is durable and easy to remove the model.
【Super Silent Driver】The Mizar Pro motherboard uses a high-performance 32-bit MCU with faster printing speed. TMC2208 silent driver can effectively reduce the noise of stepper motor than Atmega2560, the printing sound doesn't exceed 50 dBs, which will not disturb your and others work, study and rest.
【Resume Printing Function】This 3d printing machine can detect interruptions of power failure, filament run out or stuck, it will automatically pause and save the printing progress, when you handle the exception, it'll resume the previous printing task, which gives your printing work an extra layer of protection.

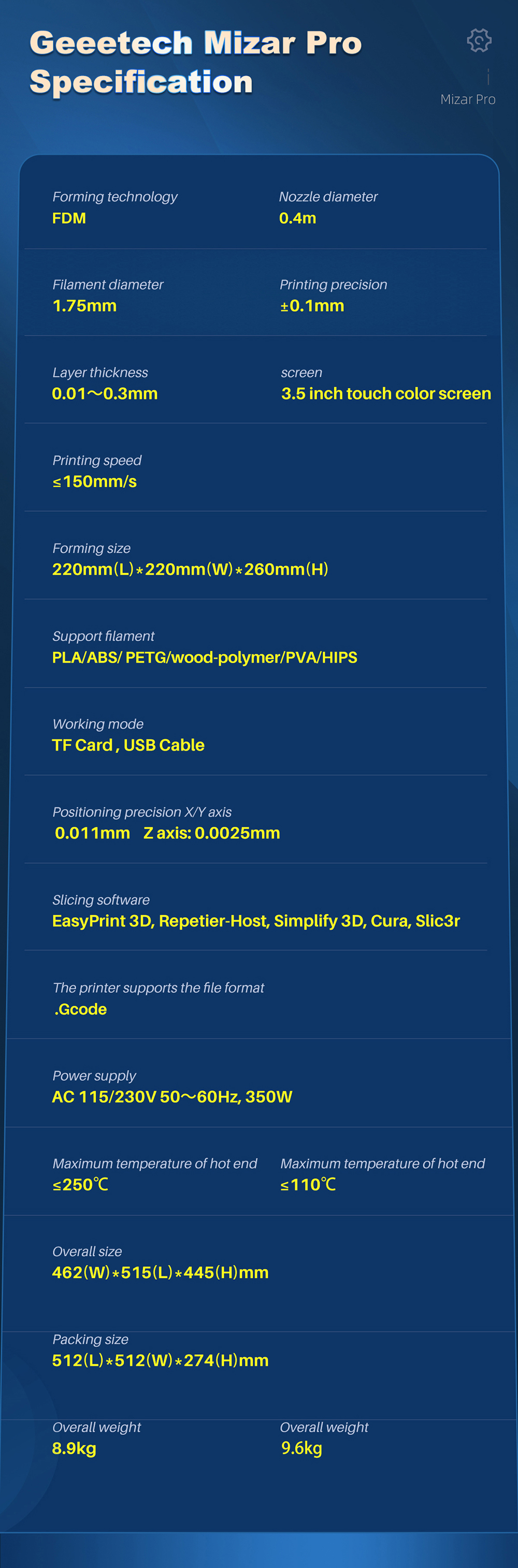

Main Specification
Printer Type | FDM |
Layer Thickness (MM) | 0.1-0.2mm (can be set) |
Printing Material | PLA,ABS, PETG, Silk PLA, Wood Polymer |
Building Platform Volume (MM): | 220*220*260mm |
Auto-leveling: | yes |
Break Resuming | Yes |
Preheat time（110℃） | 11min |
Nozzle Diameter (mm) | 0.4 |
Nozzle Quantity | 1 |
Positioning Precision | X axis:0.011mm; Y axis: 0.011mm; Z axis: 0.0025mm; |
Printing Accuracy | ±0.1mm |
Printing Speed | 10~150mm/S;，recommend 60~80mm/s |
Display Screen | 3.5” Colorful Touch Screen |
Operating System | Windows, Mac, Linux, |
Slicing Software: | Repetier-Host, EasyPrint Lite, Cura |
Supported File Format | .Gcode |
Hotbed Max. Temperature (℃): | 110 ℃ |
Extruder Max. Temperature (℃): | 250 ℃ |
Environmental Temperature (℃): | 10-40 ℃ |
Power Input | 115/230V AC, 50/60Hz |
Power Output | DC24V-15A Max, 360W |
Connectivity Interface | 1*TF Card, 1*USB cable |
Power Supply Unit Certification | CE, FCC,ROSH |
Printing Size: | 220*220*260mm |
Net Weight (kg) | 8.9kg |
Gross Weight(kg) | 9.6kg |
Printer Whole Size | 462(W)*515(L)*445(H)mm |
Packing Dimension | 512(L)*512(W)*274(H)mm |
TOP
Bei meinem Drucker MIZAR PRO ist das Heizbett ausgefallen. Habe das Heizbett durchgesessen ist ok, von der Platine gibt es keine Spannung, Rest Funktioniert._br_Was kann ich tun_br__br_Mit freundlichen Grüßen_br_Hannes Warring
Is there no voltage at the place where the hot bed is connected on the motherboard? Or is the hot bed failing to heat? Please describe in detail.
I need help with the power switch what do I set the voltage to 115/or 230 if I live in the U.S
115
Bonjour, j'ai reçu la commande le 02 mars 2023, commandée le 27/02/2023, livraison rapide, parfait.
Bonjour, merci pour votre soutien à geeetech !
Wonder if the control unit can be placed to the left or front? IE how long is the cable?
Hello, when the printer leaves the factory, we will install the LCD display on the right side with a bracket. You can also put it in the right place for your needs.
