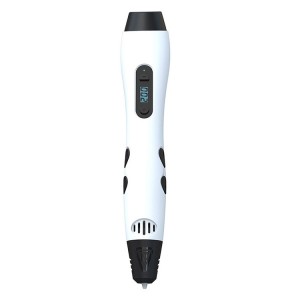

TG-17 is a high-end 3D printing pen that supports 3 kinds of filaments: ABS, PLA, and PCL. It covers commonly used 1.75mm filaments which supports high, middle and low temperature. And has a wider range of filament support;
The product uses LCD screen to display printing information, allowing you to get the current working status of the printing pen more intuitively;
The product supports real-time adjustment of printing speed and printing temperature, and printing will not be interrupted during the adjustment process, which brings you a smoother user experience;
This product adopts a replaceable pen tip design, and the printing pen can be disassembled and replaced without tools.
The product system adopts a safe design. If it is not used for 1 minute or continuously extrude for 8 minutes during use, the printing pen will automatically go to sleep mode.
Main Features

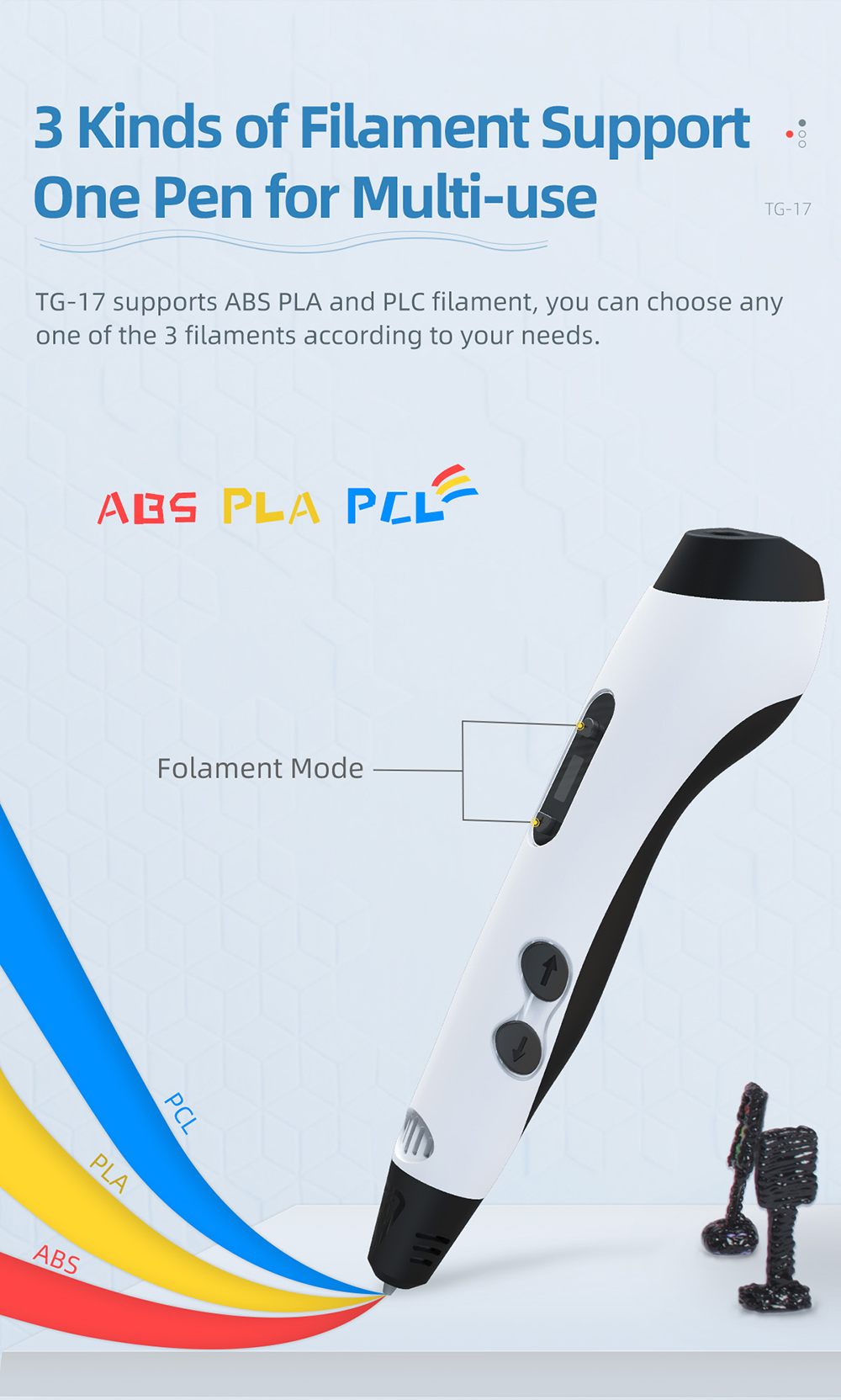

l Supports ABS,PLA, PLC: TG-17 has 3 modes for supporting ABC,PLA,PCL 3 different temperature-supported filament, allow you to choose freely
l 5 gears of speed for real-time adjustment: TG-17 has 5 gears of speed for adjustment. Users can adjust the extrusion speed of filament according to his needs during use. What’s more, compared to other products, TG-17 can continue printing process while adjusting speed, bringing users smooth and joyful printing experience.
l Adjustable printing temperature: in ABS, PLA, PLC 3 modes, the printing temperature can all be adjusted. If you find that the filament is difficult to extrude, filament too thin or bubbling, you can solve it by adjusting printing temperature.
l Smart sleep mode: for your safety and protection of the 3D printing pen, when the printing pen does not start printing within one minute after preheating or continuously extrude for 8 minutes, the printing pen will stop heating and stop printing, it automatically go to sleep mode. If you want to use it again, press the extrusion button;
l Detachable pen tip:for the convenience of cleaning and maintenance, the ceramic nozzle of the printing pen adopts a detachable design. When the pen tip needs to be cleaned or damaged, only needs to remove the pen tip to clean or repair;
l External power supply: TG-17 adopts an external 5V power supply. Compared with the built-in battery-type 3D printing pen, there is no need to worry about the power life of the printing pen;
Power Input | 100-240V AC, 50/60Hz |
Power output | DC 5V,2A |
Filament support | ABS/PLA/PCL |
Filament diameter | 1.75mm |
Working temperature | 10~35℃ |
Working humidity | RH≤85% |
Fully-enclosed machine size | 170(L)*30(W) *38.8(H)mm |
Packing Dimension | 200(L)*118(W) *75(H)mm |
Fully-enclosed weight | 67g |
Gross Weight(kg) | 440g |
