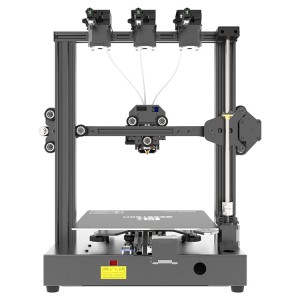

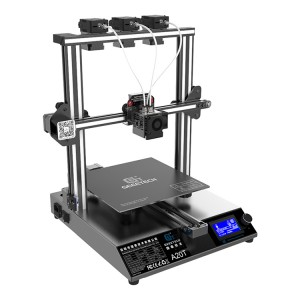

Geeetech A20T 3D printer delivers mix-color objects and greatly enriches your 3D printing life. Keeping the good performance of Geeetech 3D printers, it aims to provide users with quality printout and satisfactory printing experience.

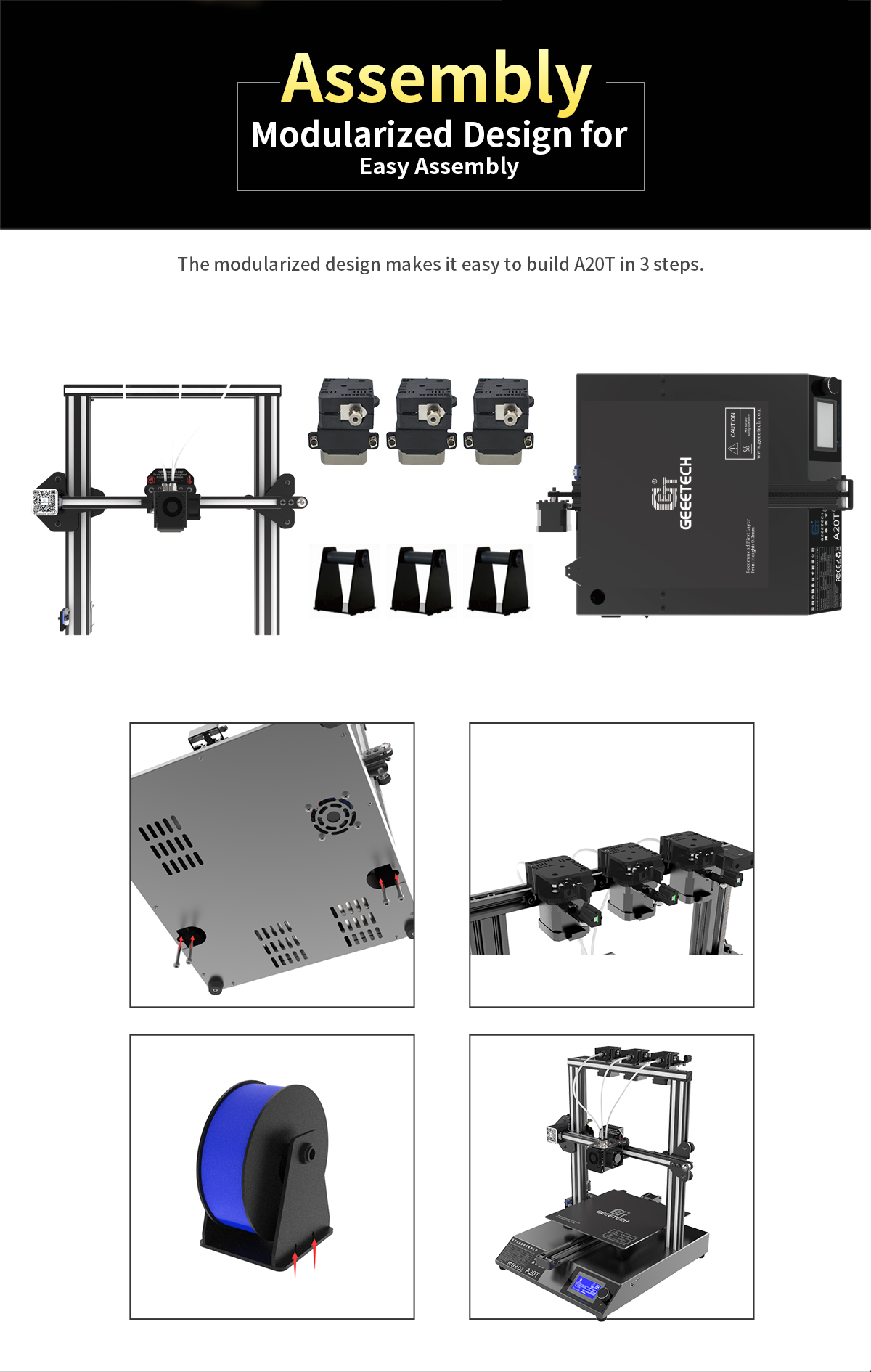

The modularized design makes it easy to build the printer in 3 steps. Its classic blue and black color combo imparts a touch of simplicity and excellence, embodying commitment of Geeetech to quality products.
With its build volume as 250 mm *250 mm *250 mm and the classic gantry structure of Prusa I3 3D printers, A20T makes the best of the building platform and enables you to view the printing details in 360° Printing at the accuracy of 0.1mm, it delivers objects with smooth surface finish, clear angles and strong structure. Besides, A20T comes with filament detector and break-resuming capability, greatly enhancing your 3D printing experience.
Its well-designed extruder greatly reduces the risk of clogging or leaking. A20T extruder cover features 360° ventilation design, greatly enhancing the dissipation of heat and guaranteeing excellent printing quality.
Printing parameters
Printing technology: FDM
Printing volume: 250*250*250mm
Printing accuracy: 0.1~0.2mm
Positioning precision: X/Y: 0.011mm Z: 0.0025mm
Printing speed: 60mm/s
Nozzle quantity: 3-in-1-out single nozzle
Nozzle diameter: 0.4mm
Filament: Diameter 1.75mm; ABS/ PLA, etc
Environment temperature: 10℃-40℃
Operating system: Windows/Mac/Linux
Slicing software: Repetier-Host, EasyPrint 3D, Cura
File format: STL/Gcode
Electrical parameters
Power input: 100-120V/200-240V
Power output: DC24V/14.6A，350W
Connectivity: TF card, USB
LCD screen: LCD 12864 screen
Mechanical parameters
Printer size: 442x447x480 mm
Package size: 510x495x325 mm
Net weight: 9kg
Gross weight: 11.5kg
TOP
Is it possible to order the A20T with the quieter stepper motor controllers (TMC2208) already installed in the unit? If so, what would the units cost be? I want to order one, but believe the TMC2208's would be nice the have installed considering my printing enviornment.
Please place an order for this SKU: 700-001-1328, but write a comment for your order, need sku: 700-001-1359
conbien de temps pour arriver en france
Merci de consulter vos emails. Nous vous avons envoyé l'information express.
Hola, acabo de comprar una para México, en cuánto tiempo llega?
Hola, tarda unos 40 días.
Gracias!!!!! Quedó a la espera de que me llegue
Hola, por favor revise su correo electrónico. Le enviaremos un correo electrónico para resolver el problema.
Ya me llegó la impresora, más rápido de lo previsto, muchas Gracias
Merci de soutenir geeetech
Bonjour, il faut combien de temps pour une livraison en France ?
Bonjour, environ 3 à 5 jours.
Wie lange dauert die Lieferung nach Deutschland?
Hallo, ungefähr zehn Tage.
Bonjour je me présente je m'appelle Yann j'ai récemment commandé une imprimante à 20 t le 13 janvier 2023 que j'ai reçu le 19 janvier 2023 à savoir que j'en suis à ma deuxième imprimante a20t que j'avais commandé sur un autre site j'en étais malgré tout très satisfait ce qui a fait que j'en ai recommandé une chez vous malheureusement cela ne se passe pas très bien la machine est arrivée complètement en vrac plateau pas serré du tout capteur ni beaucoup trop bas prise connecteur du hotend défectueuse que je dois faire tenir avec du scotch pour ne pas qu'elle se débranche malgré des heures et des heures de réglage il m'est toujours impossible de faire une impression correcte car le lit chauffant se dérègle sans arrêt je reviens vers vous parce que je ne sais pas si c'est un problème sur la machine ou si c'est juste un paramètre de réglage qui ne correspond pas et donc je n'ai pas encore trouvé la solution je ne vous cache pas que j'ai une énorme déception moi qui espérais profiter de très rapidement de cette nouvelle machine ce n'est pas le cas à l'heure actuelle mais je ne désespère pas et j'espère que vous pourrez m'aider à trouver une solution en attendant une réponse de votre part je me tiens à votre disposition cordialement
Cher client, Désolé pour le problème que vous rencontrez. Veuillez créer un ticket d'assistance sur notre site Web : https://www.geeetech.com/index.php?main_page=ticket Notre support technique vous répondra directement. Le code machine peut se trouver sur le côté de l'imprimante, comme MIZA0BMB130033. Si vous ne trouvez pas / ne connaissez pas le code machine, cela n'a pas d'importance, écrire 14 codes est correct. Cordialement
hello, how to adjust the extrusion volume of the extruders separately?_br_Thanks, have a good day._br__br_
Hello, here is the link to the video. Reference video: https://www.youtube.com/watch?v=25r-PTVJDjQ Reference tutorial: https://all3dp.com/2/extruder-calibration-6-easy-steps-2/
Добрый день сколько будет стоить доставка по России в Санкт-Петербург?
Здравствуйте, стоимость доставки составляет около $ 20,44.
Good afternoon, I would like to buy this printer at a discount, but the cost of delivery is great to the Republic of Belarus, we do not have a possibility with Russia, and if the cost of delivery in Russia is much less, but there are delivery services like cdek and the prices are not great, the cost of delivery is up to 15 usd from Russia to Belarus, can you help us
Hello, thank you for your interest in geeetech products. Unfortunately, we are unable to offer discounts on shipping at the moment.
Hi, what changes between the A20T and the Mizar S apart from the single-multicolor filament print? Why should I choose the Mizar S over the A20T since they have the same price?
Hello, Mizar S merit is equipped with an auto leveling function for convenience. Double Z-axis motor drive enhances the stability of the machine, makes less noise when working, and the model printing quality is relatively high, which is more suitable for novices. Because the A20T is an old version of the machine, it will be more difficult to use. You can choose a product that is more suitable for you according to your needs.
Mo me imprime bien, cambie el firm al del bl touch y como no iba volví al de serie ñ, desde entonces tiene baja extrusión e imprime mal, algún firmaware actualizado para arreglarla por favor
Hola, gracias por su apoyo a geeetech. Aquí está el enlace del tutorial para actualizar el firmware: https://www.youtube.com/watch?v=tKdZpohbVEA, Si tiene alguna pregunta, envíe un correo electrónico (support@geeetech.com) Nuestros técnicos le atenderán.
This is my Third 3D printer. My first was a Geeetech. Notice I came Back! This one unlike my First one needed alot less tweaking on the movement measurements, Great job Geeetech! Out of the box first test print was acceptable! the three Extruder's for the color, for color changing needed the most attention, I end up with a different software for Configuring them before Slicing. ( My problem with understanding ) I'm just starting the color mixing with the 3 into 1 and find it fun at this point in the learning curve! _br_ Over ALL I find this 3D Printer a challenged and Pleasant for it's value and it's size!!! A challenge for it's complexity in mixing and Extruder changes in the slicing process. Pleasant in it's straight forward use as a 3D printer! THANK YOU Geeetech!!!!
Thanks for your purchase and evaluation of Geeetech, this is our greatest encouragement, welcome your next purchase.
Beware when "Updating" the software, I went through [3] three of them, and every time I would "Update" the software the system would freeze up, to the point of making me send it back and get another, I did this three times before giving up until they fixed the problem, is it fixed then??
hello. Please check whether the nozzle and heat bed can move normally, and whether the leveling and zeroing are normal. If you have any questions, please send the video to support@geeetech.com
Hi,_br_Some questions please:_br_1. What the difference in A10T, 20T, 30T. I assume the volume print size?_br_2. Will be ship already 95% assembled?_br_3. Do these machine capability with ABL yet?_br_4. How long I can receive it from US?_br_5. Can I mix the color on some characters like: mouth, eyes, etc?_br_6. Does any software allow to add and edit color specific spot on STL file while slicing?_br_7. Do you have warranty in US?_br_Xiexie
Hello, 1. the biggest difference between A10T,20T,A30T is the printing size. 2.Yes 3.No,you can add the 3d-touch to Auto leveling 4.About 5-7 days 5.Color mixing printing can not print a part, only the whole color mixing. 6.If your STL is split into two or three parts, you can specify one of the parts as a color. 7.One year
Thank you _br_I recently purchased A10T and Mizar S from Geeetech reseller. I love the quiet of the Mizar S and quality but A10T is so bad and very loud noise on every parts. How do I compare to A30T. I need something as good as Mizar S but bigger volume._br_Xiexie
Hello, A30T use TMC 2208 Slient Drivers, it is slient drivers
The A20T is a real surprise! A printer that certainly exceeds expectations.
Hi where can I download the 3 colour models lizard and parot?
hello, pls check on https://www.thingiverse.com/search?q=double+color&type=things&sort=relevant
Can you say with which shipment company you can send this item To Turkey?
hello, can ship to Turkey by DHL/FEDEX/UPS, you can email to sales@geeetech.com for more details, let us know the item you would like to order .
Hello, what are shipping fees to Montreal, QC, CA? Also, if I want blue inserts instead of the white ones, is it possible? and last question, how long does it take to ship to here?
no, i meant the white/grey aluminium profile extrusion covers, i would prefer to have them in blue like the A10T model, at the correct length though, is it possible?
hello, the printer is free shipping , you choose registered mail shipping is ok , it is usd 5 . if you choose some add ons like glass bed ,filament , it will have some shipping cost , depends on the add ons weight . you can place an order first , so you can see the exact price . sorry when you say inserts , which part do you mean ? do you mean teflon tube ? if yes, we do not have blue ones. for Canada, we will ship from China warehouse , need about one week to arrive.
sorry , not able to do this for you. A20T gantry frame is with white rubber.
this printer have a heated bed? I can't find this information
hello, the printer heatbed is 3mm aluminum plate + mylar sticker platform. if you mean need a new heatbed kit for your printer , you can search heatbed , and order the A20M A20T heatbed, but leave a comment for your order , need A20T heatbed . will arrange accordingly when process orders, thanks
The print quality between a30t and a20T is The same? Only The size changue and The screen? How long does it take to arrive to Spain by normal shipping? Is posible send now With all stuff about coronavirus?
yes, A30T have bigger size, touch screen and Smartto firmware. need about 5-7 days to arrive, yes, we can send all stuff.
Tell. What is the difference between a Geeetech a 20 T Geeetech a10t and a Geeetech A30T printer ?
hello, basically A10T A20T A30T have different printing size, uses different control board, screen.
hello please where can I find the 3D Touch firmware for A20T ?

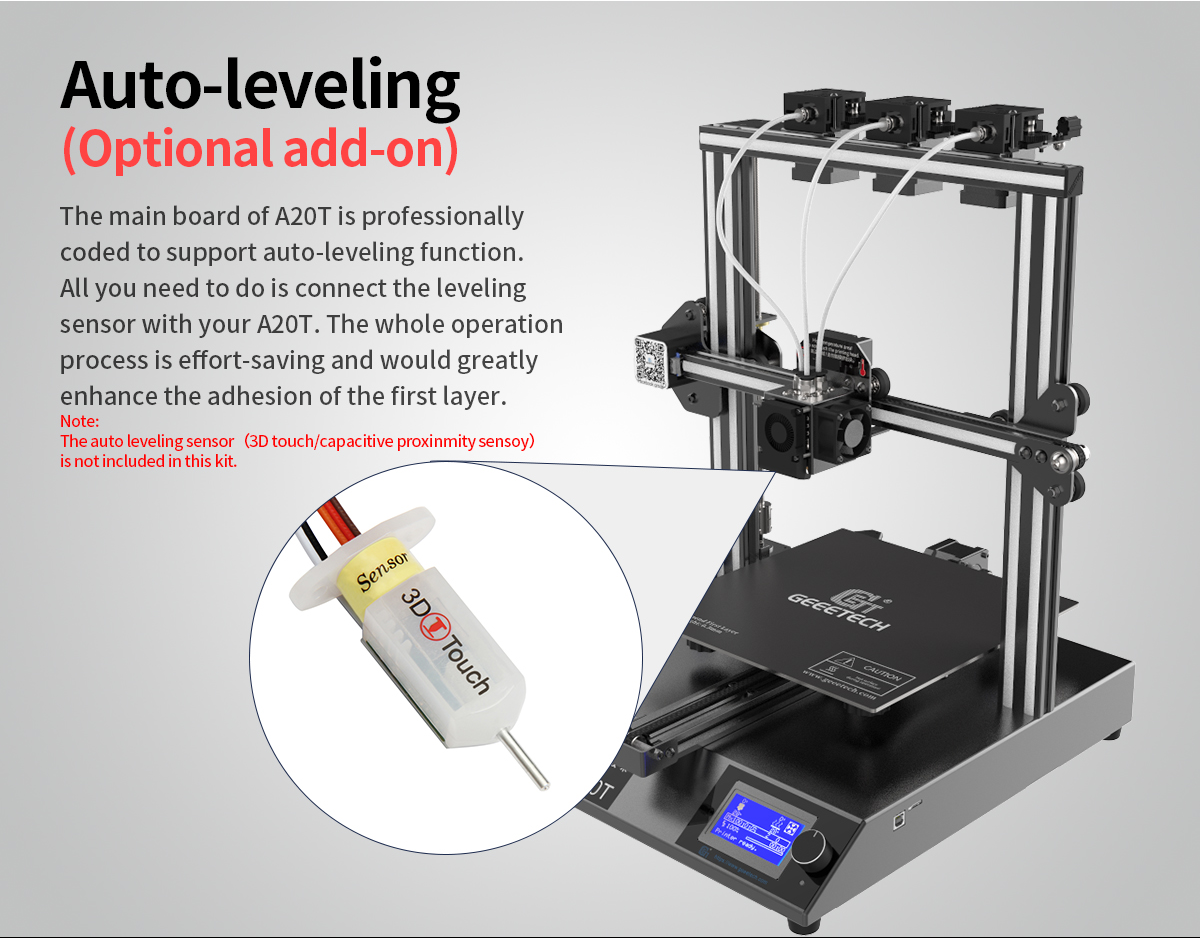

hello, pls use manual leveling first. do not use 3d touch now. we are testing the firmware that support 3d touch for A10T A20T, we will upload it to the website download part as soon as we finish the test.
How to connect the 3d Touch and use it ?
hello, connect the 3d touch to the hotend extention board, and download the firmware that support 3d touch.
What is the temperature of the heatbed?
hello, Max temp for hotbed is 100℃
What stepper driver does the control board use? Are they replaceable? When will it be on sale again?
HELLO, it uses new blue A4988 driver, yes, they are replaceable.
cuenta con garantia?
hello，yes, we offer one year warranty for 3d printer.
when this printer going to be in United States?
hello, we can ship order from China to US directly,it takes about 5 days to arrive after shipped out
Is the nozzle replaceable or is it identical to the diamond hotend? Does this printer use the Rumba board? Will you be making a A30T?
hello, it is replaceable, but we only offer the same nozzle as the printer have. it uses GT2560 V4.0 contro board. Currently we do not have development plan for A30T.
What filament do i order? ABS or PLA
hello, both PLA and ABS is ok. PLA print temp is 190-220℃ , ABS print temp is 220-250℃
Do you send this printer from EU?
yes, exactly, can send from EU warehouse, have stock in EU already
Hi! Can I change nozzle to 0.2 mm instead of 0.4?
hi, we only have 0.4mm nozzle, do not have 0.2mm
There is a upgrade for A20M?
hello, do you mean upgrade kit for A20M to A20T ? currently do not have
Can the hot end temp be increased to allow for nylon X carbon filament. It needs 250 to 265 deg
Hello, no, the max temp is 250
i have a A20M. is there a way to upgrade it to a A20T ?
hello, currently we do not have this upgrade kit, it need changes control board, add extruder, change hotend, ect, many parts.
What is the control board?
hello, the control board is GT2560 V4.0
What is the max hotend temperature?
hello, 250℃
