X
| Technology | FDM |
| Body Material | metal |
| Hotbed Type | Fixed Hotbed |
| Build Plate | PC Film+Spring Steel Plate+Rubber Magnetic Plate |

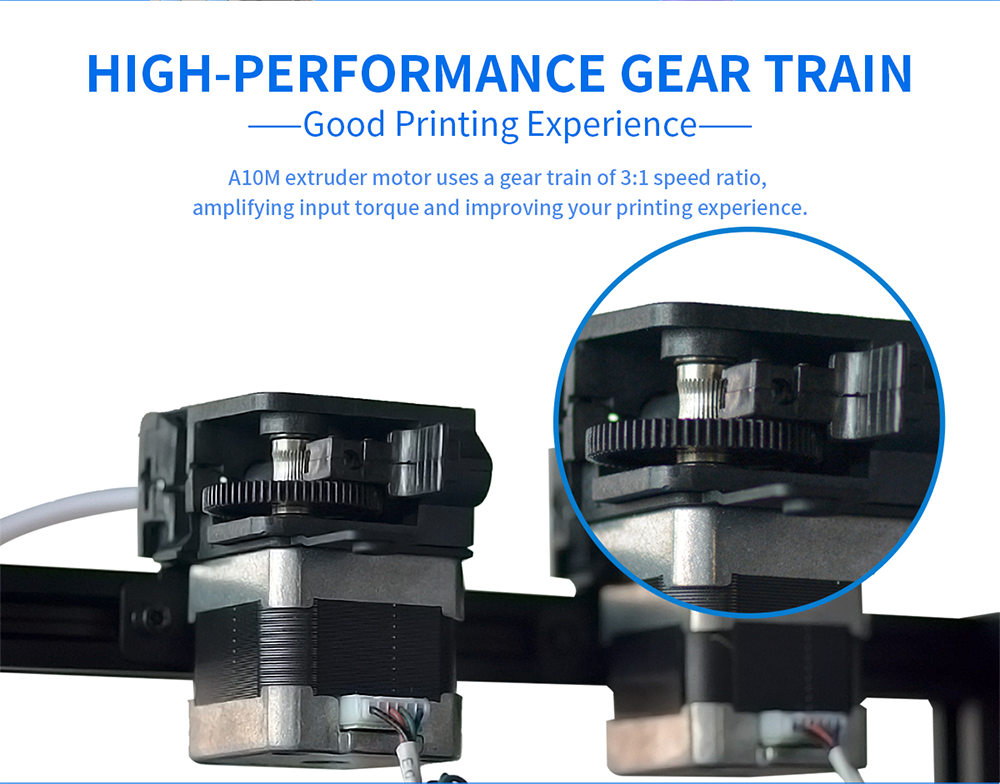

| Extruder | High Speed Dual Drive Gear Extruder |
| Hotend Material | Metal |
| Z-axis | Dual Z-axis |
| Y-axis Reinforcement Equipment | Changable Speed Damping mechanism |
| X/Y-axis Belt Quick Adjustment | Support |
| Nozzle Diameter(Standard) | 0.4mm |
| Nozzle Diameter(Optional) | 0.2mm、0.6mm、0.8mm |
| Hotbed Size | 260*260mm |
| Printing Volume | 250*250*260mm |
| Filament Cut Detection | Support |
| Filament Diameter | 1.75mm |
| Nozzle Max Temperature | 250℃ |
| Hotbed Max Temperature | 110℃ |
| Supported Filament | PLA, PETG, TPU, ABS |
| Max Printing Speed | 270mm/s |
| Max Acceleration | x=5000mm/s²，y=4000mm/s² |
| Hotend Fan | 4010 fan*1，PWM Control，Intelligent Temperature Control |
| Part cooling Fan | 5015 fan*2，PWM Control，With Strong Cooling Mode |
| Auxiliary Part Cooling Fan | 6020 fan*2，PWM Control |
| Control Board Fan | 6015 fan*1，PWM Control，Intelligent Temperature Control |
| X/Y/Z-axis Limit Switch | Photoelectric Limit Switch |
| Auto-leveling Sensor | Hall Sensor |
| CPU | ARM Cortex-M4 Core，168MHz |
| Motion Controller CPU | ARM Cortex-M3 Core，72MHz |
| Firmware | Smartto High Speed version |
| Display | 3.5-inch Color Touch Screen |
| Printing Lighting | White LED |
| Port | USB device、TF、USB Flash Disk |
| X/YMotor Control | Closed-Loop Control |
| Z1/Z2 Motor Control | Silent Driver |
| Default Modes | Slow Mode, Normal Mode, Fast Mode, Crazy Mode |
| User Mode | Users can set the printing parameters by using the Smartto Kit tool on PC |
| Break-Resume printing Function | Support |
| Filament Cut Detection | Support |
| Password Lock Screen Protection | Support |
| Hotend Strong Cold Mode | Support |
| Hotbed Leveling | Auto-leveling, Manual Leveling |
| One Button to Strong Cooling Mode | Support |
| Power Input | AC 115/230V,50/60Hz |
| Powe Supply | 350W |
| Slicer | Cura ,PrusaSlicer,EasyPrint Lite |
| Slicer Supported OS | MacOS、Windows |
| Normal Mode | ≤50dB, Auxiliary Part Cooling Fan Not Turned On,Hotend Heat Dissipation Fan Strong Cold Mode Closed |
| Machine Size | 472(L)*488(W) *525(H)mm |
| Package Size | 553(L)*544(W) *330(H)mm |
| Net Weight | 10.7kg |
| Packing Weight | 13.4kg |
TOP
Was able to fast print out of the box, very nice. I'm having also problems with the ABL. It doesn't look as if the generated mesh is taken into consideration during the print itself. As I can see different layer level on the different four corners of the print bed. I've tried to use the guidance from https://teachingtechyt.github.io/calibration.html#firstlayer. Even with either G29 or M420 S1 codes I couldn't get even first layers on the four corners
Hello , Thanks for your consult , if you 3D printer technology issue , you can contact our technical support mailbox :support@geeetech.com or create a ticket on our official website , In order to solve your problem more efficiently , Please attach some pictures of the product to illustrate the issues , thanks for your cooperation , hope you have a good day .
A very good printer._br_I recommend this product.
Dear customer , Thank you very much for your support and recognition of the printer , welcome back again ,hope you have a good day .
_br_@persvensson9414_br_för 4 minuter sedan_br_I have had this printer for some months now and appreciate the speed, accuracy and absence of level shifts thanks to the feedback mechanism. However there is something wrong with the automatic leveling software, as it does not seem to compensate right, even after measuring all 16 level points. _br_As there are no screws for manual bed adjustments, tilt as well as wobbely beds must be compensated from those sixteen samples, but it does not. The first layer is far from even in thickness and bed attach will suffer. There must be something wrong with the software as every point seem to be correctly measured by the needle, but compensation fails. _br_It would be interesting to hear other users wiew on this matter.
Dear customer , On the question of machine leveling,you can contact our technical supports mailbox :support@geeetech.com or create a ticket onour official website ,thanks for your support ,hope you have a good day .
hello._br_can you give me the link to the OLD thunder firmware and old screen soft?_br_reason:_br_after flashing new soft, flashing screen, i cannot recalibrate the screen, the touch is about 15mm beside akways.._br__br_thx._br_
Dear customer, of course , I will give you screen link : https://www.geeetech.com/thunder-fdm-3d-printer-color-touch-screen-p-1412.html, If you have any enquiries about the order, please feel free to contact us.Welcome back again, it's our great honor to serve you
Hello, where can i find the orginal first Firmware V1.13.29? Since i Update my Printer, the Touchscrenn dos not working._br_C_U
Dear customer , thanks for your consult , I will send relevant info through mailbox send to you , If you have any enquiries about the order, please feel free to contact us.Welcome back again, it's our great honor to serve you
hi._br_need thunder soft v1.13.29 but dont find a link._br__br_reason: after update to new ..33 soft i could no more adjust the display touch.._br_
Dear customer, you can contact our technical supports mailbox : support@geeetech.com or create a ticket on our official website ,hope you have a good day .
Bonjour, dans le manuel pdf à télécharger il est indiqué page 13 (4.12) qu'un Sensor 3D-Touch est offert en cadeau pour l'achat d'un "standard package". Cela veut-il dire que si je commande la Thunder je recevrai le 3D-Touch ? Merci_br_
Dear customer, yes , welcome to you for ordering this machine , is you have any problems you can contact to me this maiobox :myorder@geeetech.com ,hope you have a good day .
I ordered the one printer and I am not sure why this is in my ordered box. I do not want this second printer._br_
don't worry ,I will cancel the printer from the order , if you have any paroblems please through the email myorder@geeetech.com to contact me ,thanks for your support .
i was looking for the hotend small curcit bord i cant find it anyware_br_
Hello, I will feedback your questions to technical support. I will send it to your mailbox later. Please check it. Thank you for your consultation. this is my mailbox myorder@geeetech.com ,if you have porblem please let me know .
This printer's capabilities make it an attractive choice for both hobbyists and professionals in the 3D printing world.hope to buy someday need to earn more money._br_"Camping Gears"https://islanderexpeditions.com/_br_
Hello, thanks for your supports.
The Thunder is a GREAT improvement over the old open-loop axis machines. Is there any plan to use the closed-loop design to create an IDEX printer capable of the same high speed printing?
Thank you for your support. We will collect your comments and inform our technical staff.
Hallo,wie kann ich beim Geeetech Thunder ein PETG Profil finden und Importieren.Danke_br_Hello, how can the Geeetech Thunder find and import a PETG profile. Thanks
Hello, you can refer to Mizar S for the settings of THUNDER. You can download Mizar S related files directly from the download tab of our official website. Here is the download link: https://www.geeetech.com/download.html?download_id=57
il y a une reprise pour coupure de courant électrique ?
Yes, Thunder will save your real printing progress if it meets sudden poweroff, you can continue your printing process when power on again.
Playing with some settings in Cura... I finally got the best print quality on 250mm/s. Thunder is the worth machine to buy. I highly recommended to everyone. Installed as easy as Mizar S. 1,2,3 then print. I love the quality of this speed. Solid built, Geeetech rocks!!!_br_Thank you for your support. Will buy more..._br_Pros Tips: Cura processing script-pause at layer height: choose Reprap firmware works, won't work on Merlin.
What is the firmware on Thunder and Mizar S? Smartto or Merlin? Thanks
Hello, Thunder is Smartto, and Mizar S is Merlin.
Hi,_br_How do I fix warped bed on Thunder. Since it's auto bed level. How can I adjust it manually? Thank you
Hello, you can adjust the bed level manually according to the user manual, and here is the download website: https://www.geeetech.com/download.html?download_id=60
This is nice printer! Please advise what 4 steps speed in mm/s_br_Slow, normal, fast, crazy:_br_Xiexie
Hello, about different mode,you only need to choose the mode you need in the 3d printer, then the 3d printer will adjust it.
So when I slice it in Cura (GT profile) default is 250mm/s. Should I leave as it? Can I still change mode in control panel to have it print slower than 250mm/s if needed)? Thanks
Yes, you can change the print mode if needed. Thunder provides users 5 printing modes, with different printing speeds and quality.
is shipment from EU incl. VAT or not?
Yes, if shipped from EU warehouse to EU country, it includes the VAT.
