Alkaid is a light curing 3D printer which is using LCD technology. It has a 6.08 inch 2K resolution black and white forming screen, which has a longer service life than the color forming screen. The 2K resolution enables Alkaid to have a high printing accuracy of 0.051mm.
Alkaid uses 3.5-inch touch color screen, combined with humanized UI interaction, which can bring excellent user experience.
Main Features
● 6.08 inch 2K resolution black and white forming screen: Compare with the color screen, black and white screen has a higher light transmittance and a longer service life. What’s more, 2k resolution greatly improve the printing accuracy, which make the X/Y accuracy can reach 0.05mm.
● Larger Printing Size: 82(L)X130(W)X190(H) mm3.
● Z-axis Linear Rail: In order to improve the printing accuracy and quality, the Z-axis of Alkaid adopts a high-cost linear rail which has high rigidity, high load, automatic self-aligning and absorb the assembly error, can effectively improve the overall printing quality of the 3D printer.
● New Generation Of Matrix Light Source: The light source adopts 15 pieces highlight power quartz lamp beads, combined with the matrix lens which is made of the professional optical materials, can make the UV irradiation on the LCD screen more even and higher the intensity, hence effectively improve the printing speed and accuracy.

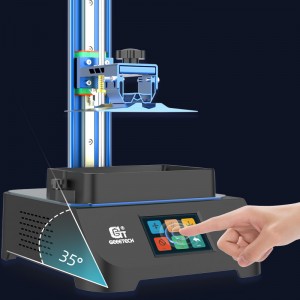

● Ergonomic Design: The control panel of the printer adopts ergonomic design. Large tilt Angle of the control panel enables the users to operate the machine more comfortable than the machines from other manufacturers.
● Efficient Heat Dissipation System: Alkaid innovatively integrates the UV lamp beads at the bottom aluminum substrate of the machine, which can larger the heat dissipation area. Combined with the cooling fan, the temperature of the lamp board can be reduced effectively and extend the service life of the UV lamp beads.
● Strict Test: Strict testing for key components before delivery.
● Technical supports available.
● Capable to supply ODM & OEM customized design and manufacturing.
Printing Parameter | |
Printing Technology | LCD Light Curing Surface Forming Technology |
Printing Size | 82X130X190 mm |
XY Resolution | 0.051 mm |
LCD Size | 6.08 inch |
LCD Resolution | 2560X1620 Pixels |
Z-axis Precision | 0.001 mm |
Layer Thickness | 0.01~0.2 mm |
Printing Speed | 30 mm/h |
UV Lamp Rated Power | 45 W |

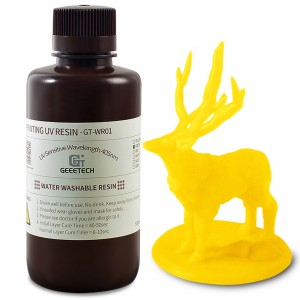

Resin | 405 nm Wavelength Ultraviolet Resin |
Slicer Software | CHITUBOX |
File Type | .CTB |
Working Environment Temperature | 10 ℃~35 ℃ |
Working Environment Humidity | 30%~70% |
Electrical Parameter | |
Power Adapter | Input: 100V~240V, 50/60Hz, Output: 12V/5A |
Connectivity | USB |
Touch Screen | 3.5 -Inch Full-color Touch Screen |
LCD Screen Resolution | 2K Forming Screen |
Mechanical Parameter | |
Printer Size | 286(L)*226(W)*372(H) mm |
Package Size | 353(L)*293(W)*464(H) mm |
Net Weight | 4.2 kg |
Gross Weight | 5.8 kg |
TOP
my software stick is corrupted according to windows. How do I get a replacement????
You can find what you need on this site. https://www.chitubox.com/zh-Hans/index
The software on the provided usb stick is corrupted according to windows 10 and windows 7. How do I get a new copy? Can I download the contents from somewhere?
Hello, here is the link to the slicing software: https://www.chitubox.com/zh-Hans/index
Where can I purchase a replacement FEP? Does the FEP frame come apart to just change the film or does it come as a pre-mounted unit?
hello, pls order this SKU: 800-001-0477 item, but write a comment for your order, machine model and product desired. we will send it to you .
Where can I purchase replacement lcd panels for this machine? My understanding is that they wear out after a period of time.
Hello, if necessary, you can place an order for this product (SKU: 700-001-1294) but write a comment for your order , need SKU: 800-001-0589 instead .
Thank you, what is the prices for the parts?
Hello, if necessary, please send an email to myorder@geeetech.com, we will solve it for you as soon as possible.
