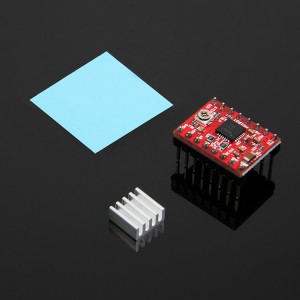

  • Stepper driver A4988 with heatsink and sticker
  • A30M Control Panel LCD Touch Screen Display
  • LCD Screen Cable for A30M/A30 PRO/A30T
  • Pneumatic Push Fitting PC4-01, Used at Hotend/Printing Head of A10, A20, A30 Pro
  • Geeetech A20 A20M A20T Heatbed Kit
  • Pro B and Pro W Printer MK8 Extruder Holder
  • V4.1B Board A20/A20M/T Heatbed Aluminum Plate
  • 16pcs 2pin M/M Jumper Wires
  • A10/ A10 Pro/ A20/ A30 Pro 24V Printing Head, Single Extruder Hotend, 24V 40W, 85mm long heating rod, for V4.1B board version printer only
  • Mizar S Magnetic Flexible Removable Printing Platform, Rubber magnetic plate + stainless steel Mylar, 260*260mm
  • 1 Meter 2GT Belt (sold by meter)
  • ESUN Multi-function 3D printing filament storage eBox
  • 2 Meter 6MM width timing belt X-axis for Thunder
  • AC/DC Adaptor
  • 2 piece TMC2208 driver for 3d printer
  • Stepper Motor D42HS3420-24B22 for A10M/A20M/A30M/A10T/A20T/A30T Extruer
  • Arduino Touch Button module
  • A30M 2 in 1 out Y type dual extruder hotend
  • Temperature Resistant Polyimide Tape 50mm x 30m
Top Selling
  • 1I3 PRO B Printer Cooler Axial Fan 12V 40x40x10mm
  • 2Arduino Touch Button module
  • 3PRO B PRO C PRO W Printer GT2560 A+ Controller board
  • 4PRO B PRO C PRO W Printer GT2560 A+ Control board package
  • 5Cooler Axial Fan 12V 30x30mm
  • Product Info
  • Package List
  • Comments

We combine GT2560 control board with LCD 2004 display to enhance people’s 3D printing needs.

GT2560, an open source control board, is a compact board that is integrated with the mighty function of the  Arduino Mega2560 +Ultimaker and Arduino Mega2560+ramps 1.4 on respect of both software and hardware and has more premium features. The streamlined interfaces effectively avoid the unnecessary troubles. Besides, the compact and highly integrated components highly integrated save more space and are easier to be mounted on most applications.

5 stepper motors, swappable driving modules, mighty ATmega2560 processor with 256k memory, 16MHz operating frequency and high-performance USB serial converter FT232RQ, all these make the GT2560 an ideal option for a 3D printer control board. What’s more, GT2560 can run over 12V to 24V which gives higher torque and higher rotation rate.

LCD 2004 display is a basic 20 character by 4 line dot matrix controller module designed for different 3D printer motherboard. The product contains 20 Character x 4 Line LCD display, a rotary encoder and 30cm connection cables. There is a SD Card slot on the back of the LCD Module, connecting it with the controller board of 3D Printer. Just insert your SD card into the SD slot, you can print 3D models without PC.

Features of GT2560:

1.Integrated with the mighty function of the Arduino Mega2560+Ultimaker and Arduino Mega2560+ramps 1.4 kit, The GT2560 can not only take full place the  them on respect of both software and hardware, but also features compact size, more convenient connection, and more stable.

2. Adopt ATmega2560 as the main control chip, coupled with the high-performance USB serial converter FT232RQ.

3. The power pack: operating voltage is 12V-24V; double power supply design feeds for heatbed and logical part separately. The current is 12A for heatbed and 5A for other parts.

4. The main circuit adopts SMD fuse tube, the diode added to the power port can provide reverse protection to the whole circuit, in addition, the 5V USB is USB port protected with 500mA Recoverable fuse.

5. 3 12v fan output and one PWM output for LED or other lighting equipment.

6. 3 55Amp MOSFET (with LED indicator, the actual output is restricted by the PCB board and the connector), all 3 MOSFET are equipped with heat sink to ensure sufficient heat dissipation and stable operation.

7. Support 5 A4988 stepper drivers (3 for X/Y/Z axis, and 2 for extruders); the subdivision of stepper motor can be setup by dial switch, eliminating jumper caps, easier to operate.

8. 3 temperature sensor input (100k thermistor is recommended)

9. Extended LCD and SD card interface support both LCD2004 and LCD 12864, with which you can print without your PC.

10. The firmware is the prevalent Marlin, which is known for stability, usability and high performance.

GT2560 Update log:

1. A 3-pin straight pin is added to connect with 3D touch auto leveling sensor, soldering is not needed anymore.

2. The USB connector will not provide 5V for the board, if you need to refresh the firmware, please provide external power supply.

3. The power port has been changed from hollow to solid one to provide higher current-carrying capability.

4. The three heater connecter has been changed into blue ones: 2-pin RC301 5.0mm 15A

Features of LCD 2004 Display:

Display: 20 Characters X 4 lines

Module Size: 98.0mm x 60.0mm X 14.0mm

Viewing Area: 76.0mm x 25.2mm

Character Size: 2.95mm x 4.75mm

Controller IC: S6A0069 or equal

Supply voltage: 5V

Package list:
1x GT2560 control board
1 x LCD 2004
2 x 20cm cable

Net weight: 240g

Shipping weight: 305g

login or register to add your words.

  • Paul Hopps   |   02/13/2023

      |   reply

    Hi I'm lookig for a GT2650 v.3 would this do to replace it as I cannot find the correct one?

    • Geeetech Staff   |   02/13/2023

        |   reply

      Sorry, our v3.0 control panel has stopped production and sales

  • Mehmet Binguel   |   05/08/2022

      |   reply

    Hallo, wo bekomme ich die Firmware für GT2560 A+ er ist auf dem Geetech 3w Pro montiert

    • Geeetech Staff   |   05/09/2022

        |   reply

      hello, you can find it on our website download area via below link https://www.geeetech.com/download.html?download_id=36
