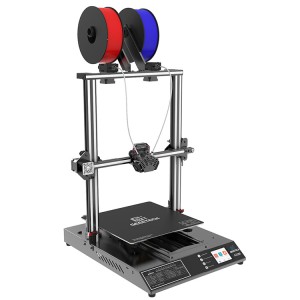

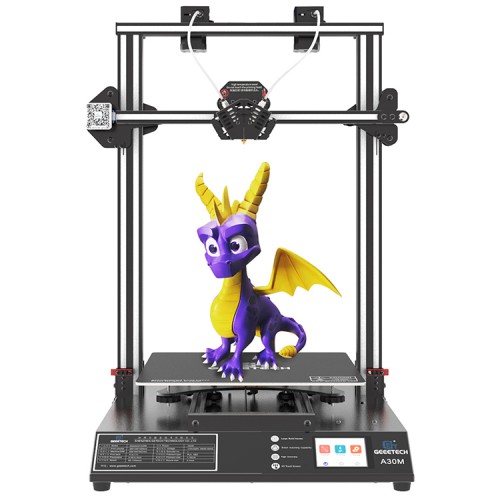

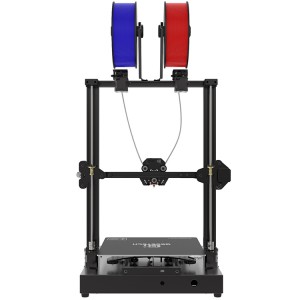

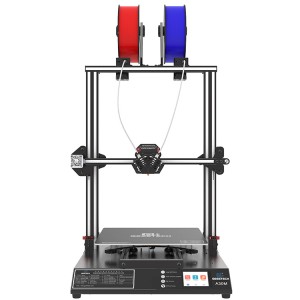

With its build volume as 320*320*420mm and the classic Prusa I3 3D printers gantry structure, A30M makes the best of the building platform, Printing at the accuracy of 0.1mm, it delivers objects with smooth surface finish, clear angles and strong structure. Besides, A30M comes with filament detector and break-resuming capability, greatly enhancing your 3D printing experience. Different from other models, the A30M uses brand PSU, longer life time, more stable and safe. A30M can enrich your mix-color printing experience .
Features:
Password protection
Full touch screen
Screen brightness adjustment
Dual Z axis optical limit switch
Dual Z axis
TF card stand-alone printing
Filament sensor
Power loss-resuming
Auto bed leveling
Ventilation design
Large volume
High accuracy
Printing parameters
Printing technology:FDM
Building volume:320*320*420mm
Printing accuracy:0.1mm
Positioning precision:X/Y:0.011mm. Z:0.0025mm
Printingh speed:60mm/s recommended
Filament diameter:1.75mm
Nozzle diameter:.04mm
Filament: ABS/PLA/wood- polymer/PVA/HIPS/PETG,etc.
Temp:
Max temp for hotbed:110°C
Max temp for extruder:250°C
Software resources
Operating system:Windows.MAC.Linux
File format: STL,G.code
Electrical
Power supply: Input:110V/220V Output:DC 24V/18.8A
Connectivity: USB,TF card
Display screen: 3.2''full-color touch screen
Mechanical:
Frame: Aluminum profile
Build Platform: Mylar+Aluminum plate
XY Rods: Wear-resistant aluminum profile
Z axis: Lead screw
Stepper Motors: 1.8°step angle with 1/16 micro-stepping
Physical Dimensions & Weight
Machine Dimension: 508x545x657 mm
Shipping box Dimension: 550x665x316 mm
Machine Net weight: 13.8 kg
Machine Gross weight: 20.5 kg
TOP
Hi, I recently brought an a30m and am having issues with really bad layer shifts. No setting i change in cura seem to make it stop. Only happens on the Y axis . Im almost regretting selling my creality ender 3 v2 and buying this as I've had nothing but trouble.
Hello,try slowing down the print speed by 50%. And if that doesn't work, pls create a support ticket on our website https://www.geeetech.com , My Account --log in --Help&Support ----New ticket The technical support staff will cantact with you.
Did you get your problem solved?
Hello, please send pictures and videos of damaged parts to myorder@geeetech.com Our staff will help you.
Hello, does the A30M have auto leveling or do i have to buy a bl touch?_br_
Hello Thomas, you need to buy a 3d touch if you need auto leveling
Bonjour, J'ai reçu le colis qui était en parfait état, mais quand j'ai déballé l'imprimante, je me suis rendu compte que la tête double extrudeur est cassée. Je vous envoie les photos. Merci de bien vouloir me faire parvenir une tête le plus rapidement possible. Cordialement, Jacky LUNA.
hello, yes , pls send the picture to sales@geeetech.com
Hello. I am interested in buyng a A30M printer. I also would like to have autolevelling. What probe can i buy for autolevelling ? I have seen you sell two probes. A regular and a pro one. Also do you deliver to france and what is the delay ? Thanks.
Hello Emmanuel, yes, we deliver to France, the both probe are working with this machine, you can choose one of them, Thanks,
I'm still waiting after 1 month....
Hello Does the A30x model(s) work with the "Easy Print 3D" software directly or is more hardware need purchased?
hello，easyprint has a mobile version and a computer version. The computer version can be directly connected via USB，you can download Easyprint Lite Release on our website software directly. The mobile version requires a 3d wifi module, which can no longer be used as we do not produce and sell the 3d wifi module now.
Hola, he comprado la impresora hace un año y funciona perfectamente bien, la unica pega es que el ventilador del mofset de la cama hace un ruido tremendo desde hace varios meses y no hay recambio para poder comprar.he enviado el comentario al servicio tecnico pero han pasado olimpicamente de mi, ni me han contestado.
hello, pls open a support ticket on our website . click your account on the right top corner, then you can see Help & Support button , and pls open a ticket there, our technical support will reply you directly
Do you ship to the Philippines?
yes, we can ship to there ,any more about this, you can email to sales@geeetech.com
Can the Z-Offset be adjusted live while printing?
hello, yes
How? On my A30M there is not z-offset adjustment while printing. Exactly where is this setting please?
hello, you need to turn off the auto leveling function on screen first , then can do z-offset adjustment
hello, you need to turn off the auto leveling function on screen first , then can do z-offset adjustment
Flexible filaments(such as TPU) can be used?
can not use TPU on A10 A10M A10T A20 A20M A20T A30M etc , only DIY printer like PRO B , PRO C can print TPU, because their extruder and hotend is close to each other.
Hello. I'm interested in this printer and I live in Italy. When will it be available in Europe / Italy?
hello, it is already available in EU Germany warehouse, can ship from EU warehouse to you directly.
DO you ship this printer by DHL to Kuwait?
yes, we can ship to Kuwait by UPS or FEDEX or DHL
super imprimante, besoin d'ajustements comme n'importe quel modele. attention au double extrudeur. lorsque l'on fait un cercle à 50%-50% un coté sera d'une couleur et l'autre sera de la deuxieme. je posterai quelques photos des résultats. Par rapport à la A30, c'est le jour et la nuit au niveau qualité de fabrication. aucun bruit, double capteur en Z evitant de mettre le portique en crabe. Super produit
Bonjour, livré vous en Belgique ? A combien s'élève les frais de ports? Merci.
hello, yes, we can ship to Belgium
Hello. I'm interested in this printer and I live in Germany. When will it be available in Europe?
hello, it maybe need 1-2 months more to have stock in EU warehouse. actually you can order it now, we can ship from China warehouse to you by DHL, need about 7 days to arrive, but you maybe need pay import tax to your local customs. generally we will write usd 138 for A30M printer, usd 9 for 3d touch, usd 9 for 3d wifi on the shipment invoice. if you do not want to pay custom tax, we can ship by special airline to you, but it need about 20 days to arrive.
Hi, could you tell me if this A30M model is available in your EU wharehouse and could be delivered in France for Christmas period ? Additionally, does an evolution through an A30T is schedulled on a short period as you already done for yours A10M and A20 models ? Best regards.
hello. it is not available in EU warehouse now, only China warehouse available. Currently do not have A30T, maybe will have this model in Febrary, not sure.
Hey there I got my a30m yesterday and right away i have to say that this thing is gorgeous. I love it But i tried to instal the 3d touch but i found nothing about the connectors and how i have to connect them on the print head. Can you help me ?
hello, it is connected to the extension board, pls send an email to sales@geeetech.com, i will send you the connect picture
Hello. Its looks very nice one!! Is it also shipped to the Netherlands? Kind regards marc
hello, yes, we can ship to Netherlands from China. it is only available in China warehouse currently.
Shipping to South Africa?
yes, we can ship to Sounth Africa by express. pls send an email to sales@geeetech.com after you draft the order, will confirm the order for you then you can pay it.
vous livrez en Suisse ?
yes, we can deliver it to Switzerland
En ce qui concerne les buzes (nozzle), la A30M utilise-t-elle les même que la A10M/A20M ?
hell, yes, it uses the same nozzle with A10M/A20M, SKU 45-001-0448
Is this ready to ship to Canada. Will it be available in a 3-in-1 model
hello, can ship to Canada from China warehouse. Currently we only have A10T A20T, do not have A30T model
when is this release want to see a review before adding to the collection
hello, will release it in China warehouse next week
hello! do you have a date for the release of this printer? thank you
hello, estimated will be available for shipping in China warehouse next week
Bonjour, je voudrais commander la A30M. Mais avant j'aurais souhaité savoir si le module wifi et le capteur 3D touch était fournit avec? Et si ils n'y sont pas, comment faire pour les commander. Merci
hello, yes, A30M support 3d wifi and 3d touch. They are optional parts, if you need them , pls search 700-001-0969 for 3d touch, 800-001-0507 for 3d wifi.
Why pre-order? If I order him now, how long will it be before I have him in Germany?
It is not released yet. we will release the A30M about at the end of OCtober, estimated it will be ready for shipping at China warehouse on end of October or early November.
hi!... when do you send this order?...
hello, it is pre order now, estimated will release on September, will ship the A30M order to you as soon as it is released
