Notes:
- 3d touch and Capacitive Proximity Switch have the same function, just need choose one of them depend on your needs.

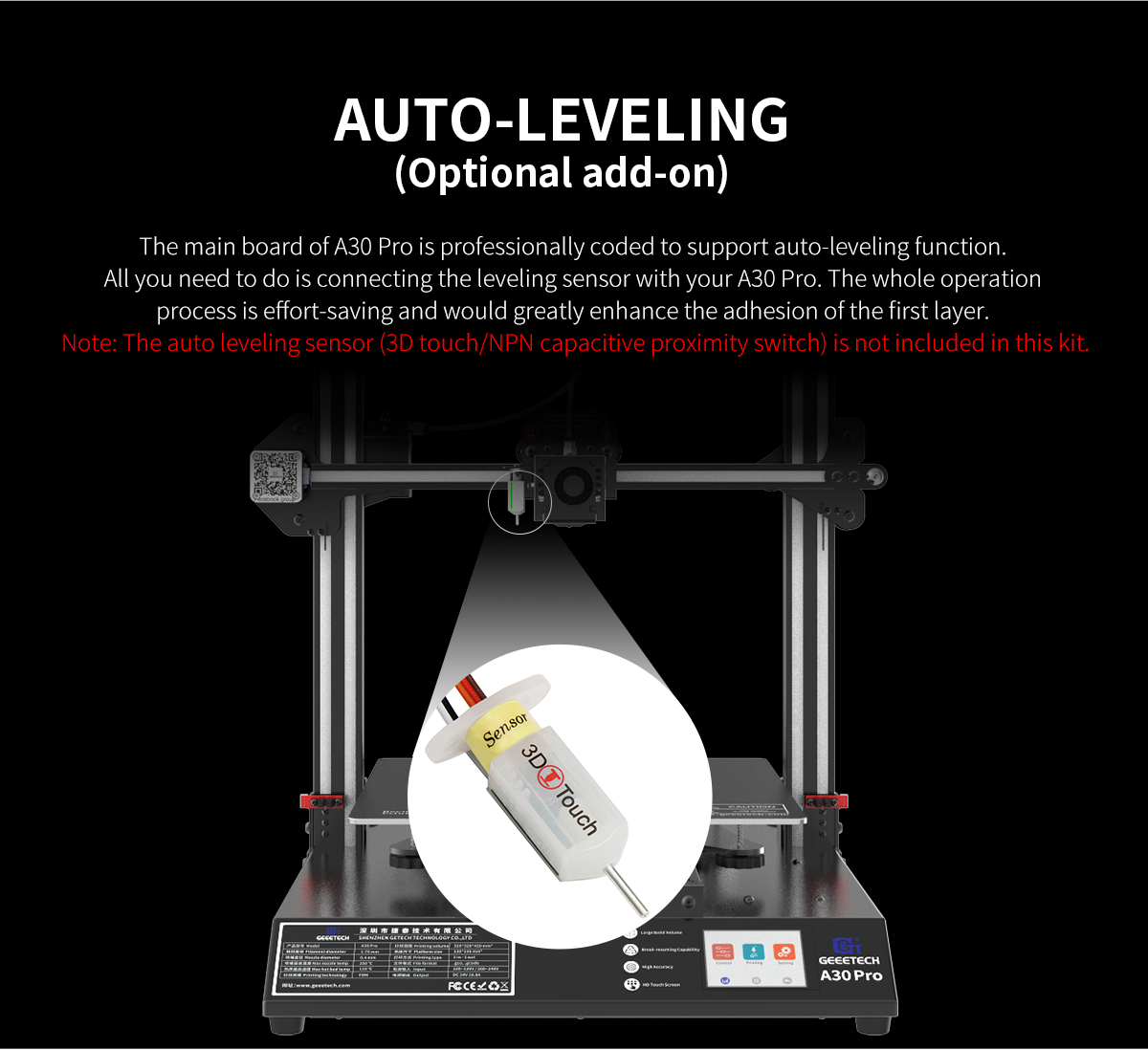

- need add 3d touch auto leveling sensor separately to do auto leveling.
Geeetech A30 Pro 3D printer, adopting GTM32 control board, greatly enriches your 3D printing life. Keeping the good performance of Geeetech’s portfolio of 3D printers, it aims to provide users with quality printout and satisfactory printing experience.
With its build volume as 320*320*420mm³, and the classic Prusa I3 3D printers’ gantry structure, A30pro makes the best of the building platform and enables you to view the printing details in 360°. Printing at the accuracy of 0.1mm, it delivers objects with smooth surface, clear angles and strong structure.
Besides, A30 pro comes with filament detector and break-resuming capability, greatly enhancing your 3D printing experience. Different from other models, the A30pro uses brand PSU, longer life time, more stable and safe to enrich your printing experience.
Features:
● Low noise, silent printing
● Password protection
● Full touch screen
● Screen brightness adjustment
● Dual Z axis optical limit switch`
● Dual Z axis
● TF card stand-alone printing
● Filament sensor
● Power -resuming capability
● Auto bed leveling
● 360°ventilation design
● Large volume
● High accuracy
Printing Parameters
Printing technology: FDM
Printing volume: 320*320*420mm
Printing accuracy: 0.1~0.2mm
Position precision: X/Y: 0.011mm Z: 0.0025mm
Printing speed: 60mm/s
Nozzle quantity: 1-in-1-out single nozzle
Nozzle diameter: 0.4mm
Hotbed Max. Temperature (℃): 100℃
Extruder Max. Temperature (℃): 250℃
Filament: diameter 1.75mm; ABS/ PLA, etc.
Environment temperature: 10℃-40℃
Operating system: Windows/Mac/Linux
Slicing software: Repetier-Host, EasyPrint 3D, Cura
File format: .gcode
Electrical Parameter
Power input: 115/230VAC 50/60Hz
Power output: DC24V/15A , 360W
Connectivity: TF card, USB
Touch screen: 3.2 -Inch Full-color Touch Screen
Mechanical Parameter
Printer size: 508x545x657 mm
Package size: 670x560x320 mm
Net weight: 13.5kg
Gross weight: 20.2kg
TOP
Hi, I like this printer but can't get shipping options to South Africa. Can you assist?
hello , yes , we can ship to South Africa , pls contact sales@geeetech.com about this , thanks
Hi, does this printer have a heated bed?
hello, yes, if you need a new heatbed kit, you can search hetabed , and order the A30 PRO heatbed , and leave a comment for your order, need A30 PRO hetabed kit .
Excellent product one of the best , I worked with 3d printers for while it is nonproblematic easy to set up a good printer to start off with for a Newcomer to the printing world. But please read the instruction. I highly recommend this product and the filament of Gtech I had many types of filaments,But because I wanted to save money I bought a cheap filament from a different company but I can’t mention and that did not work out for me too well and the machine lol . But anyway if you’re looking for a excellent 3d printer and filament then go with Geeetech brand. It is basically headache free unless it’s causing by human error. I give this product five stars out of five ⭐️ ⭐️ ⭐️ ⭐️ ⭐️ one minor problem over time you will find that the filament detector will have wearing tear , you do to have to replace it regularly over time, The filament detector could be solved by introducing a small tube Or ring of metal inserted in the end of the filament detector to protect it from wearing out. Thanks geeetech
hello Matthias, thanks for your feedback and matainance suggestion about the filament detector
Is the Firmware based on Marlin?
Hi, A30 PRO firmware is based on Smartto
