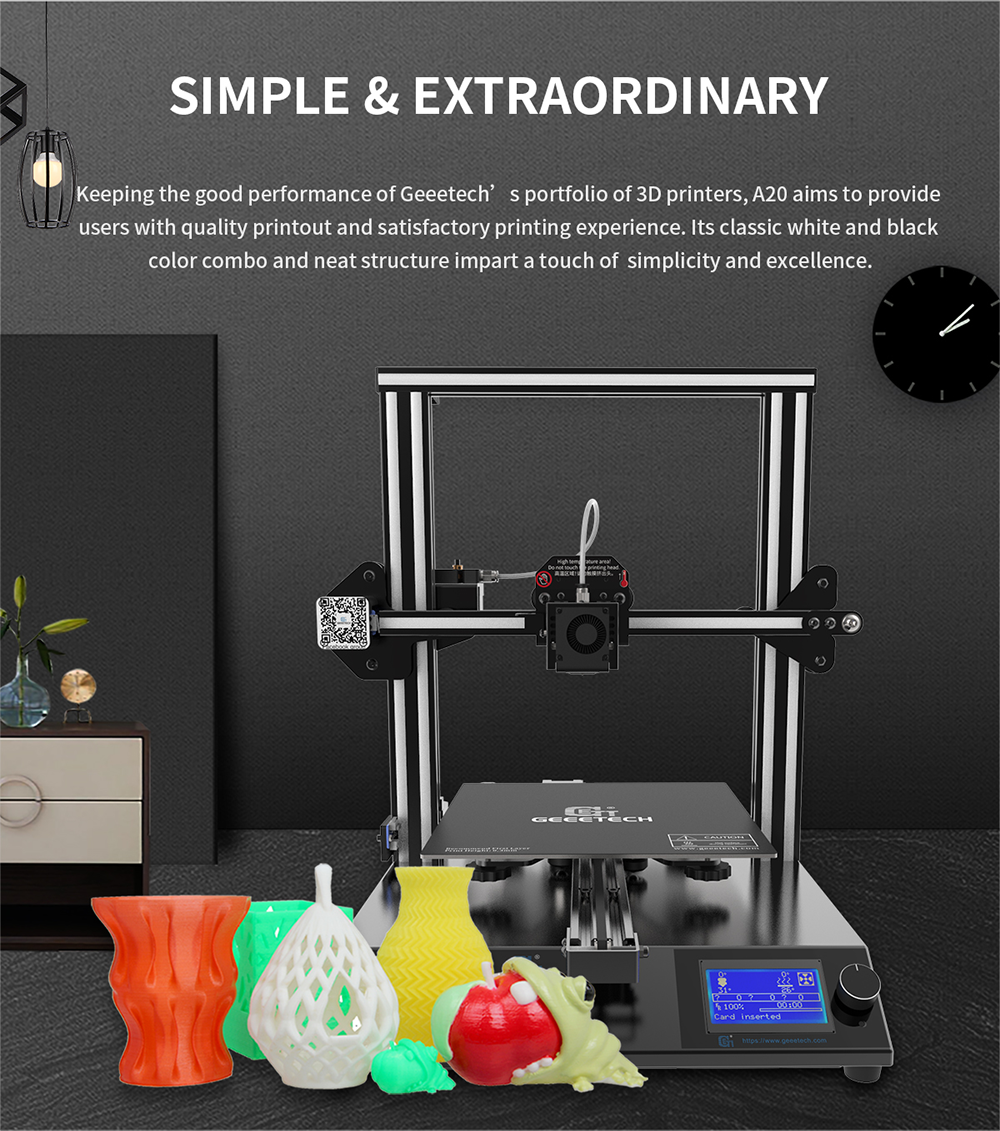

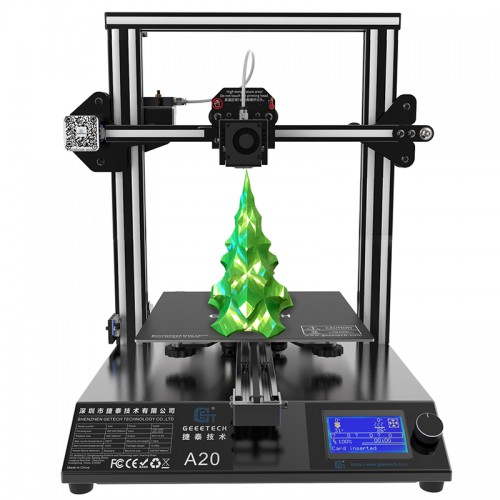

Based on customers’ feedback, Geeetech A20 3D printer is designed to be reliable, cost-effective and easy-to-assemble. Running stably, it delivers quality prints and provides you with satisfactory printing experience.

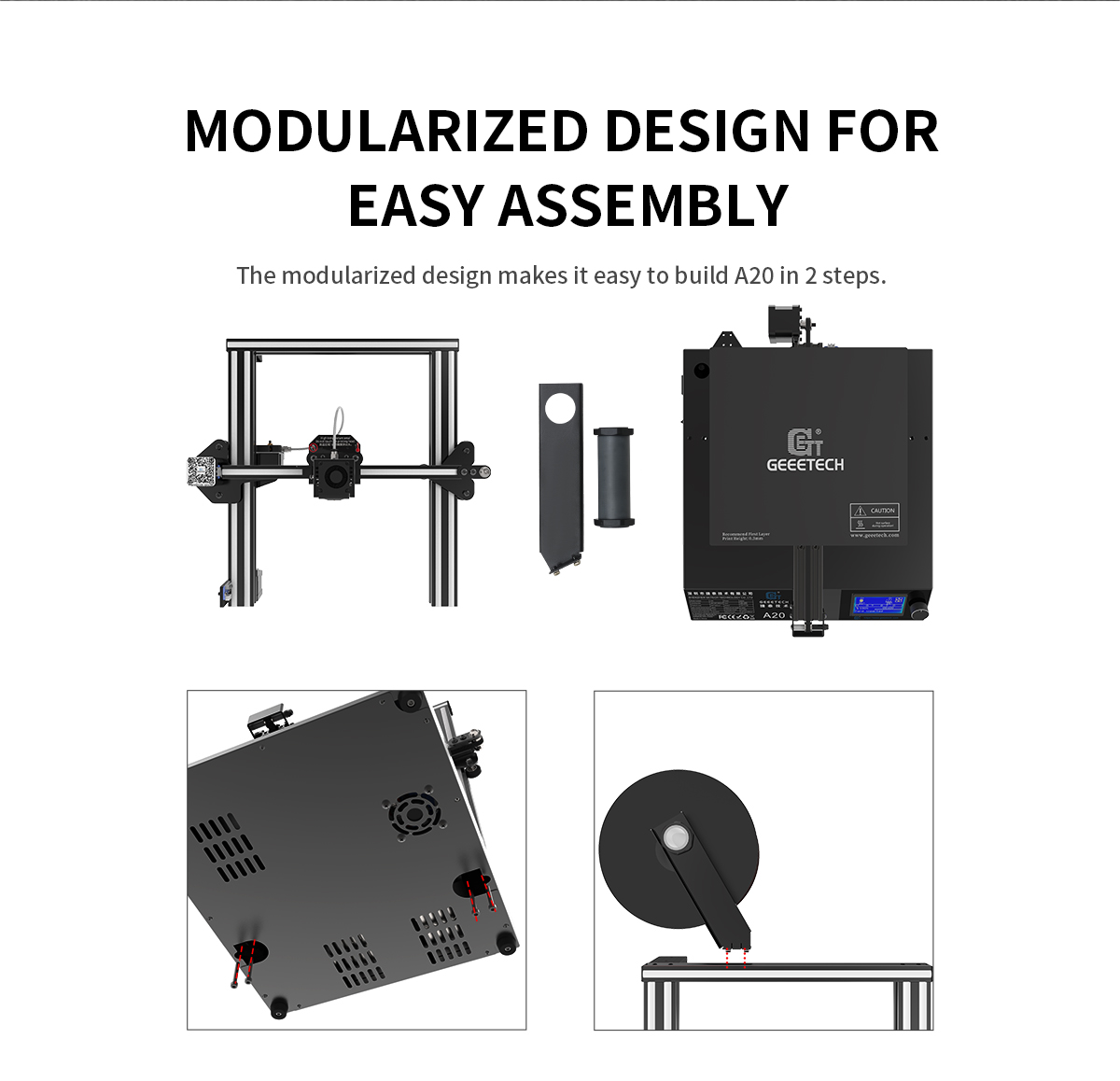

Keeping Prusa I3 3D printers’ gantry structure, its modularized design provides you with an easier assembly experience. The electronic parts are integrated into its bottom frame, making A20 steady and enhancing its print results.

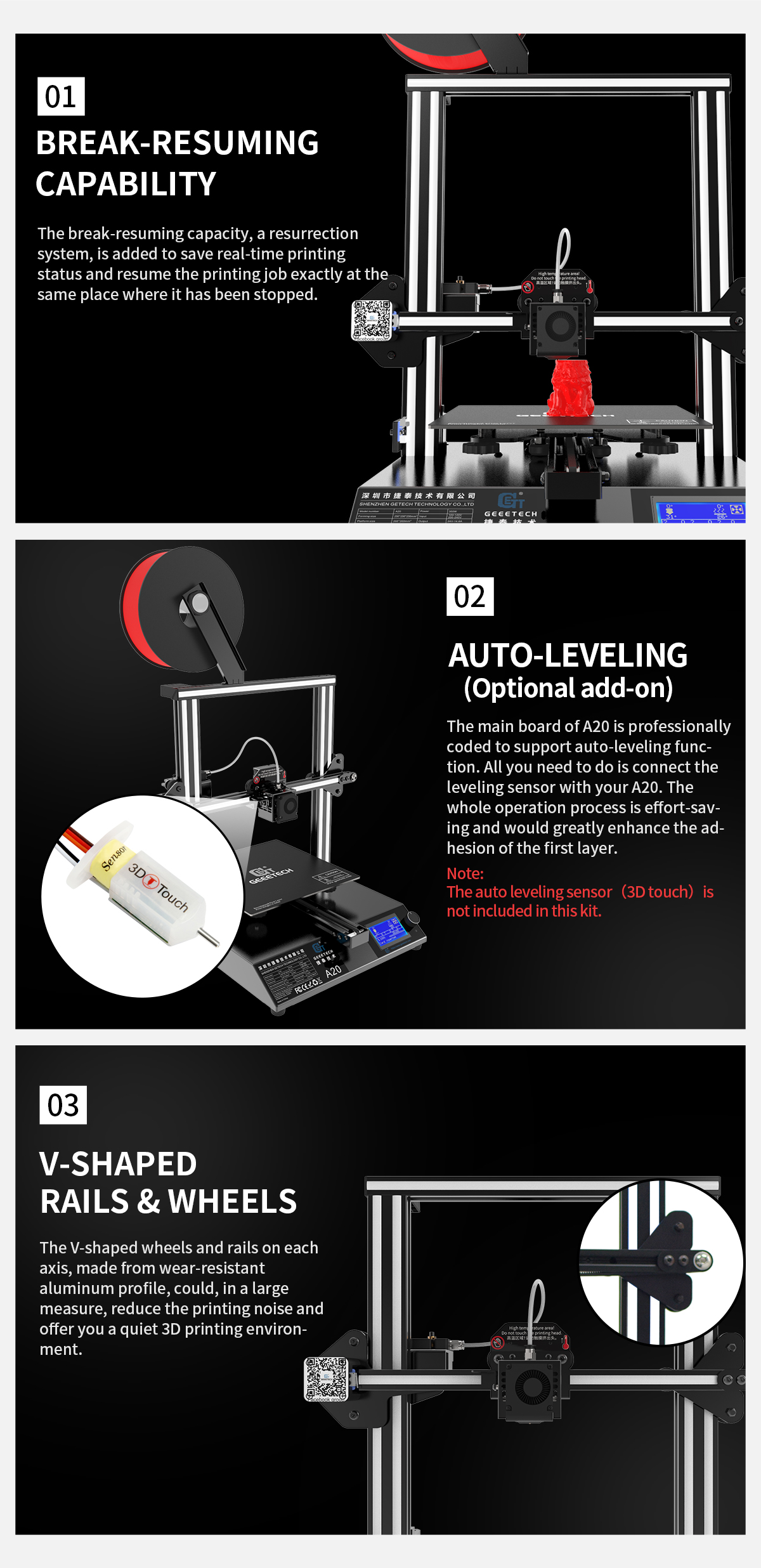

It comes with filament detector sensor .

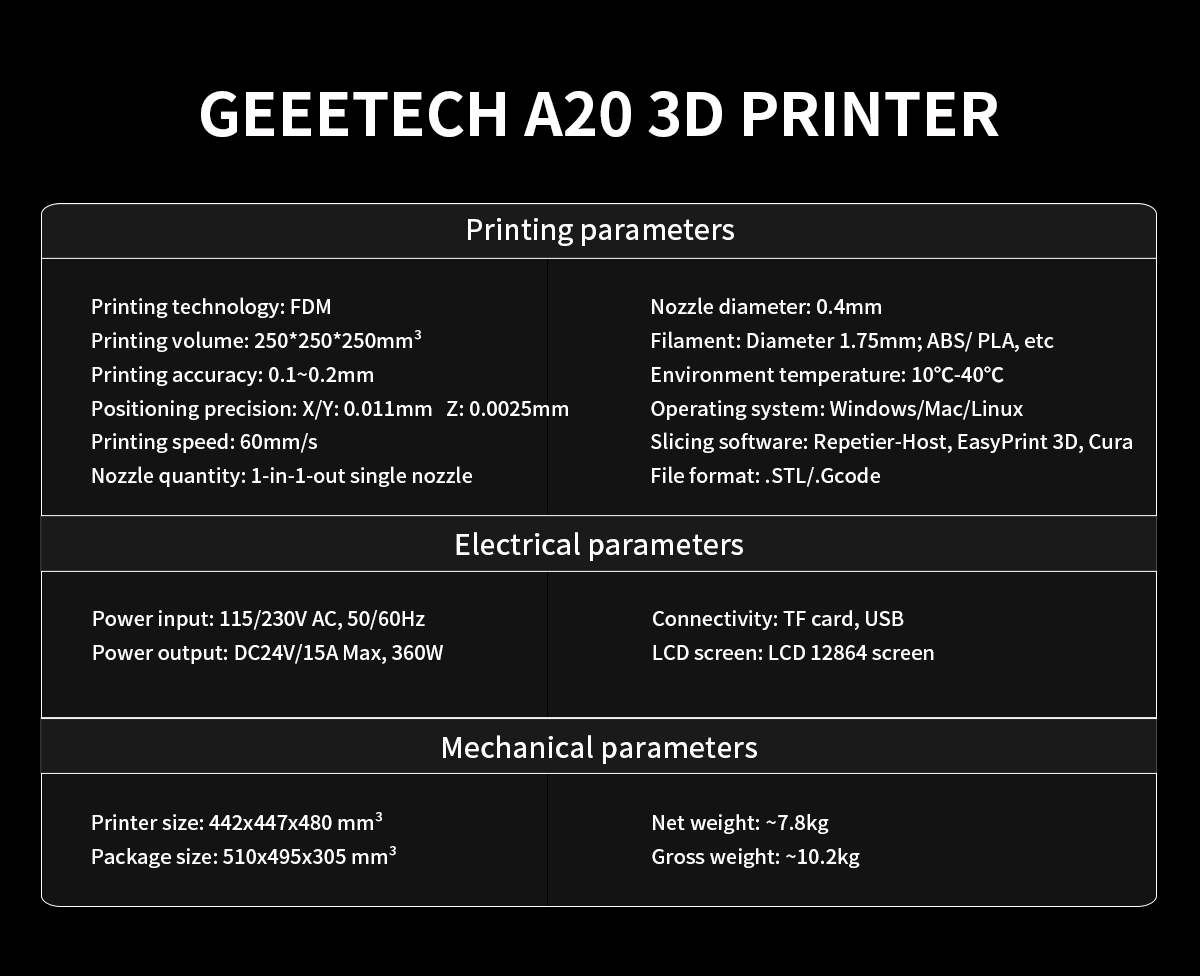

Printing parameters
Printing technology: FDM

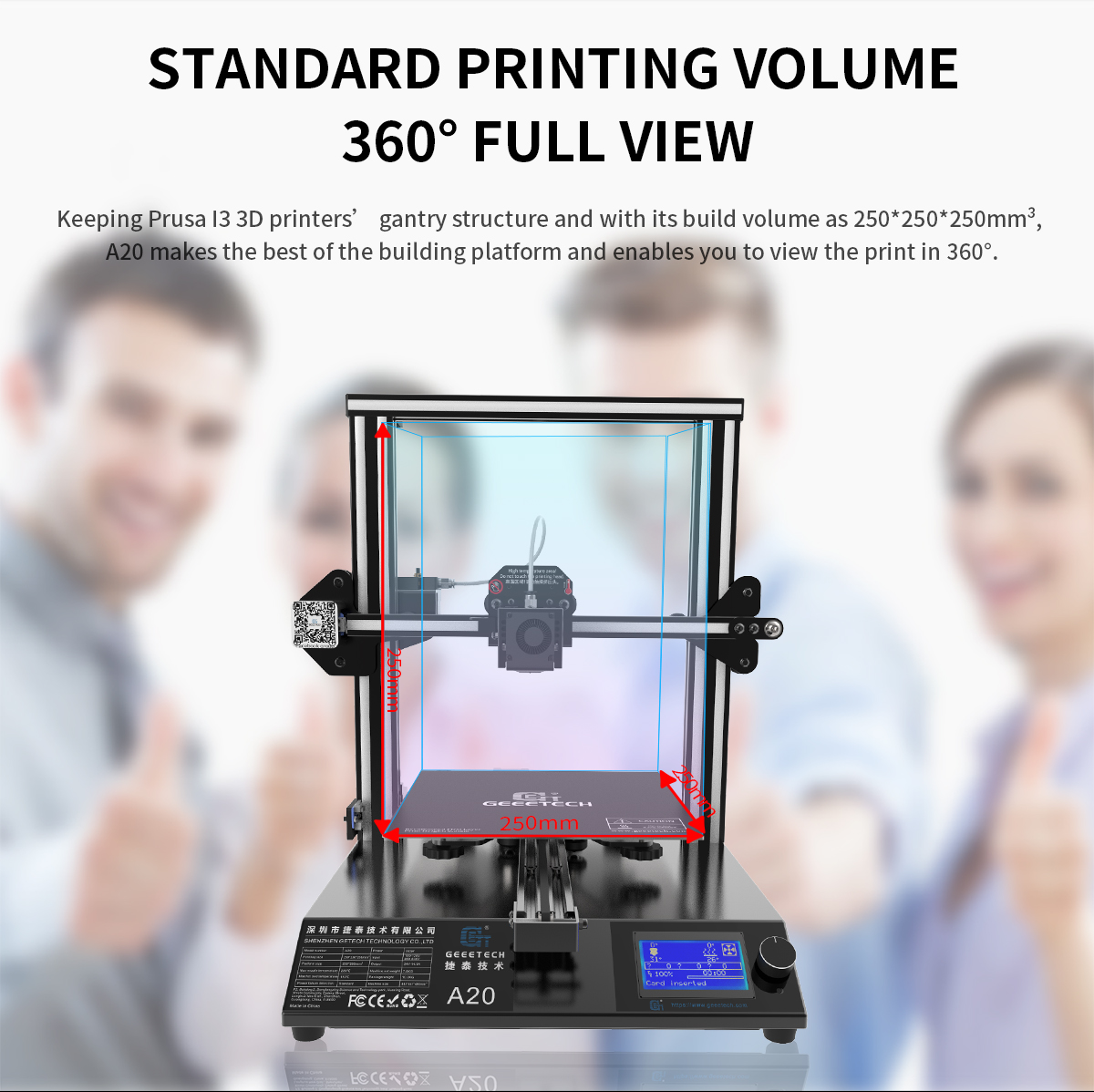

Build volume: 250*250*250 mm ;
Printing accuracy: 0.1mm
Positioning precision: X/Y：0.011mm. Z： 0.0025mm
Printing speed: 180 mm/s (max)
Filament diameter: 1.75mm
Nozzle diameter: 0.4mm
Filament: ABS / PLA /wood-polymer/PVA/HIPS/PETG, etc.
Temp:
Max temp for hotbed: 100℃
Max temp for extruder: 250℃

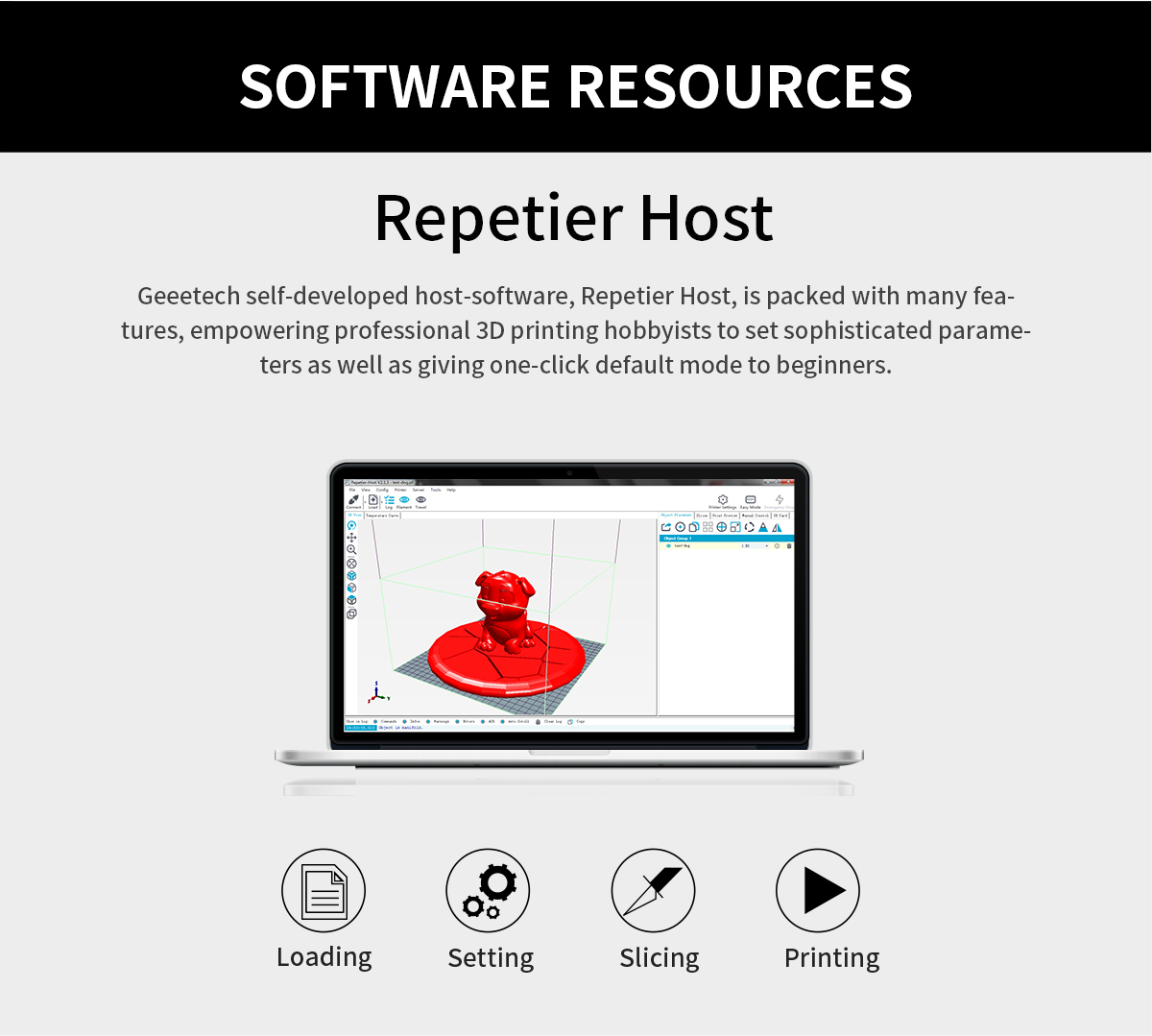

Software resources
Operating system: Windows, MAC, Linux
Control software: Repetier-Host, Simplify 3D, Cura, Slic3r, etc.
File format: .STL, G.code
Electrical
Power supply: Input: 110V/220V Output: DC 24V/15A
Connectivity: USB cable, SD card (support stand-alone printing)
Display screen: LCD 12864
Mechanical:
Frame: Aluminum profile
Build Platform: Aluminum heatbed+ plastic sticker
XY Rods: Wear-resistant aluminum profile
Z axis: Lead screw
Stepper Motors: 1.8°step angle with 1/16 micro-stepping
Physical Dimensions & Weight
Machine Dimension: 442 x 447 x 480mm
Shipping box Dimension: 510 x 495 x 295mm
Machine Net weight: 7.8kg
Machine Gross weight: 10.2 kg
TOP
My Motherboard gt2560 v3.1 is crash (out)._br_Is possible upgrade my giantarm A20 with gt2560 V4.0 ?_br_If is possible, where i search a video or instruction for connect mother with printer ?
Terribly sorry. Since the wiring is different, it cannot be upgraded. The only way is to buy a printing motherboard that is compatible with many models. We cannot provide it.
Hello everybody, is it possible use TPU filament with A20? Thanks
yes
can I use a bed glass with this printer?_br_
Hello, if necessary, please place an order for this sku: 700-001-1067, but write a comment for your order, need sku: 700-001-1156
I love this Printer, its not done any faulty printer, its been perfact, i have had loads of printers and this is the best one i have had to date, i will be getting the A30m soon, the only this wrong wth the A20 is the screen wheel is faulty, but i use octoprint so not to bad, i would refer this to anyone._br__br_As to the geeetech support its so so so bad, i have ask this questions and they have never come back to me NEVER !!!!!
Hello,thanks a lot for your supppot. About contacting with the technical support, pls create a support ticket on our website https://www.geeetech.com , My Account --log in --Help&Support ----New ticket , Our technical support will reply you directly. The machine code may at side of the printer . if you do not find/ know the machine code, it does not matter , write any 14 code is fine. https://www.geeetech.com/index.php?main_page=ticket
very satisfied with the printer very good just the only one with no knot with knitting needles
I recently purchased an A20. I then purchased a Touch Probe but the software does not recognise it. Do I need to load another firmware version? If yes, then where do I get it from. A20 has GT2560 V4.0 motherboard. Display says FW 2.0
hello, yes, if use 3d touch sensor on A20 , you need update firmware that support 3d touch . you can find Help center -- Download at the bottom of our website main page, then choose A20 on Download , you can see Related Software, download A20_G05(CH340 Support 3Dtouch) if your A20 has V4.0 motherboard
If I purchase the A20 can I at a later date add another extruded, be able to upgrade it to an A20M ?
hello , we do not suggest do upgrade. and do not have a upgrade kit for sale.
I have had my printer a week.
I have an A20 v4.0 and I want to up grade to A20M what extruder motor do I need to buy also can I use A4988 stepper motor drivers with it. If yes would you recommend I change all to a4988
hello, if want to grade to A20M , need a new complete hotend group, 2 new extruders 700-001-1103, filament detector, filament holder and some screws. if decide to upgrade , you can send an email to sales@geeetech.com, we will send you the list and arrange order offline for you . A20 already is with A4988 drivers .
hello, it will need a new complete hotend group, add an extruder , filament detector, extruder cable and filament holder. you can send an eamil to sales@geeetech.com for details.
Hi, I have an A10 and I am very happy with it, and now I am planning to buy a new printer. I am trying to decide between an A2 and an A20M but while reading and looking for information I realized that I would like to buy a printer that allows me to print with flexible filament. What do you reccomend? Which is the cheaper printer you offer to use flexible filament? Is there any upgrade for the A10, A20 or A20M to make them print with flexible filament? Thanks and regards.
helo, if you want to print flexible filament like TPU, pls take our DIY models, such as PRO B printer.
EU Warehouse = DE? Which is the carrier? DHL? I have to pay 3€ for tracking anyway? Thanks
In EU, we have warehouse in DE BEL which can cover all EU countries by UPS DEL FEDDEX,logostics decide send which carrier by the shipping fee. If you want the tracking number, you need pay, if do not need it, you can choose not to pay it
I have had my printer a week. Tried to set up 3d touch. Used firmware on GitHub and it's broken my printer. LCD doesn't work. When I try to install the firmware again I get lots of errors. Can you please supply me with the firmware that came with the printer
Hi please kindly send mails to victory.lei@geeetech.cn, he will send you options,but please send a vidio or picture to show the lcd or printer status, thanks
