If you need download firmware or files, please visit links:https://www.geeetech.com/download.html?download_id=49

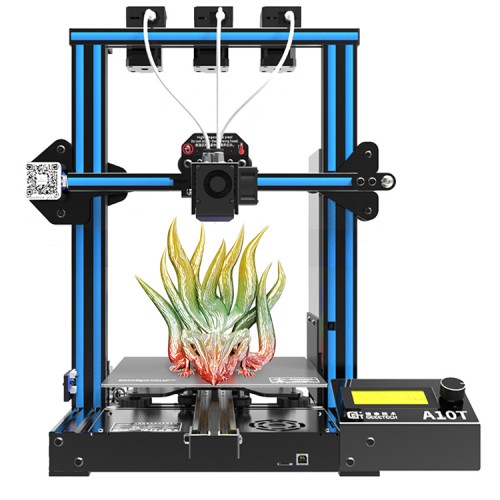

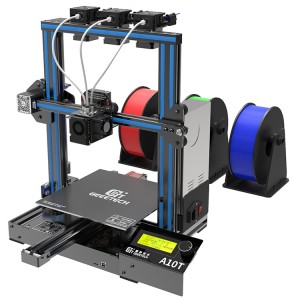

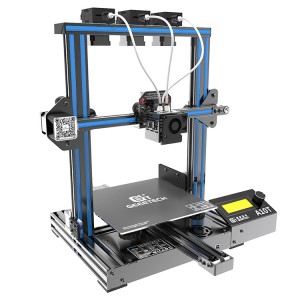

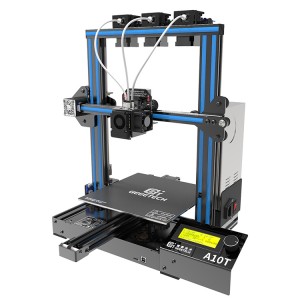

Geeetech A10T 3D printer, adopting open
source GT2560 control board, delivers mix-color objects and greatly
enriches your 3D printing life. Keeping the good performance of Geeetech
3D printers, it aims to provide users with quality printout and
satisfactory printing experience.
The modularized design provides you with an easier assembly experience. Its classic blue and black color combo imparts a touch of simplicity and excellence, embodying commitment of Geeetech to quality products.

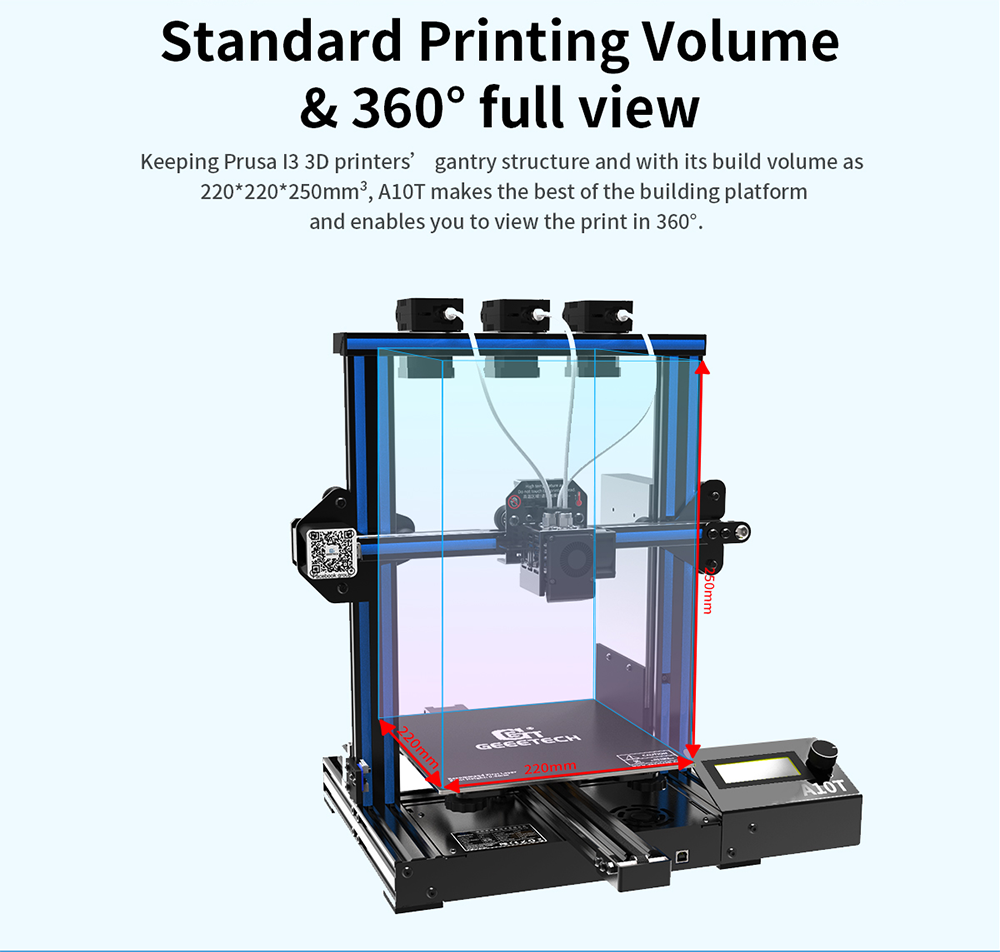

Keeping Prusa I3 3D printers’ gantry structure and with its build volume as 220mm*220mm*250mm, A10T makes the best of the building platform and enables you to view the printing details in 360°. Printing at the accuracy of 0.1mm, it delivers objects with smooth surface finish, clear angles and strong structure. Besides, A10T comes with filament detector and break-resuming capability, greatly enhancing your 3D printing experience.
Its well-designed extruder greatly reduces the risk of clogging or leaking. A10T extruder cover features 360° ventilation design, greatly enhancing the dissipation of heat and guaranteeing excellent printing quality. A10T extruder motor uses a gear train of 3:1 speed ratio, amplifying input torque and improving your printing experience. Adopting the modularized design for extruder wiring, A10T makes it easy to exchange the wire. The V-shaped wheels and rails on each axis, made from wear-resistant aluminum profile, could, in a large measure, reduce the printing noise and offer you a quiet 3D printing environment.
Parameters
1)Printing parameters
Printing technology: FDM
Printing volume: 220*220*250mm3
Printing accuracy: 0.1~0.2mm
Positioning precision: X/Y: 0.011mm Z: 0.0025mm
Printing speed: 60mm/s
Nozzle quantity: 3-in-1-out single nozzle
Nozzle diameter: 0.4mm
Filament: Diameter 1.75mm; ABS/PLA, etc.
Environment temperature: 10℃-40℃
Operating system: Windows/Mac/Linux
Slicing software: Repetier-Host, EasyPrint 3D, Cura File
Format: .STL/.Gcode
2)Electrical parameters
Power input: 100-120V/200-240V
Power output: DC24V/15A，350W
Connectivity: TF card, US
Display screen: LCD2004 screen
3)Mechanical parameters
Printer size: 478x413x485mm
Package size: 530x470x257mm
Net weight: 7.96kg
Gross weight: 9.98kg
TOP
I've had this printer for a few years, was working very well. Now I am finding that it seems there is a hump in my build plate of almost 1mm in the middle. Checking and measuring show that it is NOT the build plate, but the horizontal aluminum extrusion bar that the print carriage rides on. And it's not bent, it's WORN OUT in the middle from the friction of the wheels over time, and naturally worn more in the middle where the most movement is. I can't really flip it over without drilling holes in it, and it seems I can't even buy a replacement from you. I don't want to replace the whole printer, and I don't want to try to drill out my bar, and a new one would need drilling too. Can you guys please sell me a new horizontal bar for an A10-t?_br_Thanks!
Hi, please try a different heat bed or use a glass plate.
If you love headaches and clogs this is the machine. It prints well in the first times but has time goes by it just get worst and worst and you get problems when printing with 3 colors.. I call it the wast filament machine , I am sorry geeetech but I am very disappointed :/
Sorry for the problem you meet. Pls create a support ticket on our website: https://www.geeetech.com/index.php?main_page=ticket Our technical support will reply you directly. The machine code may at side of the printer, like MIZA0BMB130033. If you do not find/ know the machine code, it does not matter, write any 14 code is fine.
Hola, estoy interesado en la impresora A10T. Que tiempo tardaría en llegarme a Madrid, España?_br_Gracias
Hello, A10T is in stock in our EU warehouse and it need about a week to be sent to you after paid.
A10T - I bought the machine and put it to work immediately but as "stock", I discovered it's not very satisfactory for me. However, after a few days, time in which I modded the machine a little, it came out it is a great machine! Sturdy, which leads to precision prints. _br__br_Fact is that the A10T can be used by a novice right out of the box, but without spectacular effects. For a novice, is a good machine for the price and can be used to make not too very complicated projects. As stock, is a medium machine that worths more than its price. _br__br_After few little improvements, it turns out to be a great machine, almost of proffessional grade, which is fantastic, especially considering the low price!_br__br_For me, having a very long and extensive experience in 3D technology, the only minus of the machine is that the stepper drivers are soldered, which makes difficult to change them when necessary._br__br_PLUSES:_br_- solid and stabile construction_br_- precise_br_- very good adherent printing surface for the hot bed (one of the best in industry, if not the best!)_br_- easy to mod and improve_br_- compact _br_- precise axis movements, even if it has a single shaft Z axis _br__br_In conclusion, I fully recommend the machine and I'm sure I'll buy more products from Geeetech. Don't let yourselves fooled by the low price, the printer worths much more that that!
Thanks for your support
I recommend!!!
Thanks for your support, Cristiano
Do you have a double z-axis kit for the A10T to upgrade? Or CAD Files of Parts of A10T to create own kit? I would also upgrade with Endstop on both sides for double z-axis. Does the original motherboard support double z-axis?
hello, we do not have double z-axis kit available. the control board does not support it.
Dear Friends, thank you for your answer. The same question for A20T printer: can you deliver an A20T printer equipped with TMC2208 drivers NOT soldered on board and the board set from you for the new board and drivers? If yes, what will be the new price of the machine? Since I intend to order a machine next week, your quick response will be grately appreciated.
sorry , we can not deliver it like this . we can only deliver A20T with drfivers soldered on it, it is our latest version.
Dear Friends, can you deliver an A10T printer equipped with TMC2208 drivers NOT soldered on board and the board set from you for the new board and drivers? If yes, what will be the new price of the machine? Thank you in advance for your support!
dear Robert , sorry we can not deliver the printer with TMC2208 drivers NOT soldered on board . our current printers have V4.1B board with stepper drivers soldered on it .
I ordered a whole Set. 3D Printer, 3X Filament, 3D Touch, Superplate 3D and 3D WiFi Module. I ordered via Express from nearby Wearhouse. I am absolutley happy with the whole Process and super excited to start into 3D Printing and Slicing and Modelling with Geeetech A10T. Thank you very much for your Support.
Hallo, I am looking for the Geeetech extruder Extension Board for the A10T and the cable connected to. I experience shaky contacts, so I want to change the components.
placed order 20200904183806455 Thanks for your help
hello, they are not listed on our store , for extension board, you can order 700-001-1110 , for hotend cable from hotend to control board, you can order 37-001-0243 . but when you palce an order, pls leave a comment for your order , need the parts for A10T printer instead. i will change order for you when process orders, send them for A10T
Hello, have the printer a titan Heatbreak?
hello , the printer has Titan extruder
Is there a list of supported filaments?
support ABS/PLA, these 2 types are the commonly used ones. for other material you can also try
What is the thikness of the heated bed ? 1.5mm as the A10M or 3mm as the A20M ?
hello, A10T heatbed is 3mm aluminum plate + 0.4mm mylar sticker platform. if you prefer glass platform, you can buy a glass additionally, 700-001-1085. if you are going to use the superplate glass to replace the black mylar sticker, one tip need your attention please, in case of the nozzle touch and scrach the platform: Because the superplate glass is 3mm thicker than mylar sticker, After you replace the glass with existing mylar sticker, pls remember to up the limit switch on Z axis for about 3mm, then do leveling before you start printing and you can also slightly adjust the knob under platform.
I would like to order a new heatbed kit (Superplate and heatbed) for my A10M but with this aluminium heated bed of 3mm (the original is too thin and deform). Is it possible ? I have a A20M with this aluminium thickness of 3mm and it is perfect, I love the A20M!
hello, yes, pls send an email to sales@geeetech.com , will arrange offline for you.
hello, yes, pls send an email to sales@geeetech.com , will arrange offline for you.
Is there any reviews or a video of this printer A10T actually printing ?
hello, we will upload the releated video on this product page soon.
