Cubietruck(Cubieboard 3) standard package
INFO

SKU:800-001-0194

Shipping Weight:700g

Free Shipping!

$95.00
Qty:
VS
VOTES

Vote for specials.

0 votes

A20M



Cubietruck also named as Cubieboard3 is the 3rd board issued by Cubieteam, using Allwinner A20 main chip, the same as Cubieboard2. But it is upgraded with some new features, such as 2GB memory & 8G NAND Flash, VGA display interface on-board, 1000M NIC, WIFI+BT on-board, supporting Li-battery and RTC, SPDIF audio interface.


Features

  • Allwinner Tech A20 SOC
  • SATA supported
  • 54 extended pins
  • Built-in HDMI/ VGA display interface
  • Built-in WIFI+BT module
  • 2GB DDR3 RAM
  • Built-in IR receiver
  • SPDIF audio interface




Specifications

  • Allwinner Tech SOC A20 ARM® Cortex™-A7 Dual-Core ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1
  • 2GB DDR3@480MHz
  • HDMI&VGA 1080P display output on-board
  • 10M/100M/1G Ethernet
  • WIFI + BT wireless connection with antenna on-board
  • SATA 2.0 interface support 2.5’ HDD (for 3.5’ HDD, only need another 12V power input)
  • Storage solution NAND + MicroSD
  • 2 x USB HOST, 1 x OTG, 1 x SPDIF, 1 x IR, 4 x LEDs, 1 x Headphone, 3 x Keys
  • Power DC5V@2.5A with HDD support Li-battery & RTC
  • 54 extended pins including I2S, I2C, SPI, CVBS, LRADC x2,UART, PS2, PWM x2, TS/CSI, IRDA etc.
  • LINEIN&FMIN&MICIN, TVIN x4 with 2.0 pitch connectors
  • PCB size 11cm *8cm*1.4mm
  • PCB color: red
  • Operating temperature: -10℃ ~ 70℃.

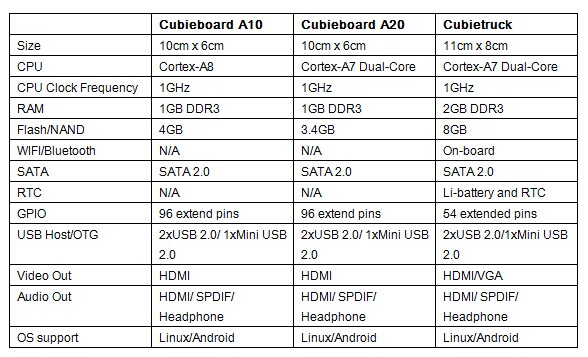

 the following is a detailed comparasion of the 3 cubieboards




Package list



  • 1 x Cubietruck main board
  • 1 x SATA 2.0 cable
  • 1 x Mini USB to OTG
  • 1 x Mini USB cable
  • 1 x USB to 1.7 mm DC jack cable
  • 1 x Acrylic shell
  • 1 x Ultrathin Heat Sink
  •
