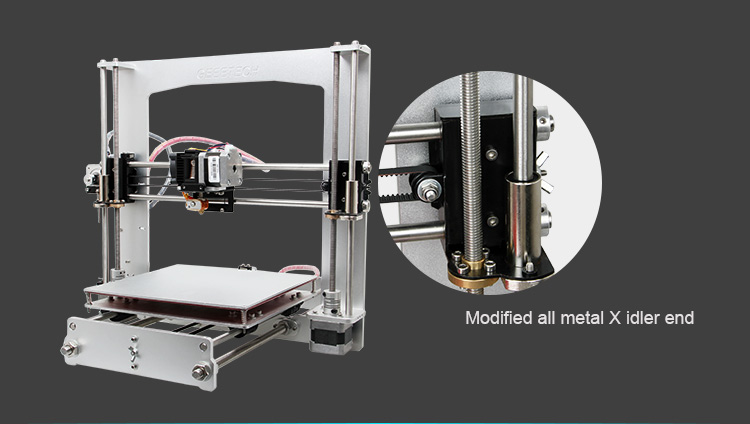

Prusa I3 A pro 3D Printer
This Prusa I3 A pro 3D printer is streamlined and optimized based on the previous Geeetech Prusa Aluminum I3 3D printer. This Prusa I3 A pro has the following features.
3-in-1 3D printer control box
As you can see, the most obvious modification is that we add a 3-in-1 3D printer control box for this Prusa I3 A pro which gathers the motherboard, power supply and LCD Cpanel in one box, saving the space taken by the printer and bringing you a neat and organized desktop, most importantly, the power supply is installed inside the control box now, which is not only for protecting the power supply, but also for eliminating unnecessary dangers, protecting your family and your pets.
Self developed control systum,GT2560.
Metal sheet carriages ensure flexibility and stability
With heat bed for better adherence of different filament.
200 x200x190mm standard printing volume for desktop 3d printer
Better printing quality
Easy assembly, easy debugging
High precision machined parts and well-designed mounting holes make the installation process simple and fast. The control box is already assembled by us, what you need to install is only the body, which saves a lot of time for you. The detailed assembly manual makes your DIY assembly easy and time-saving. Detailed instructions provide you with convenient debugging guidance.
Reserved design for upgrading
In consideration of your need to upgrade the extruder in the future, we use reserved design on this printer and you can upgrade any part. This kind of design provides you with more choices of revamping this printer and more ways to use it. Visible parts, convenient for trouble shooting
Compared with the box-type printer, Prusa I3 3D printer DIY kit is more suitable for starters. All the parts are visible, and you can easy access to those parts. It is very convenient for for trouble shooting when you are using the printer.
Print technology: FFF/FDM
Build volume: 200 x200x190mm
Printing resolution: 0.1-0.3mm
Filament diameter: 1.75mm
Nozzle diameter: 0.4mm
Filament type: ABS/ PLA/Flexible PLA/Wood-polymer
Operating system: Windows/Mac/Linux
Control software: Repetier-Host, Printrun
File format: .STL , G-code
Max heated bed temperature: about 110°C
Max extruder temperature: about 240°C
Input: 115V or 230V
Control board: GT2560
Connectivity: USB, SD card (support stand-alone printing)
Body: Aluminum plate of 6 mm thickness
Build Platform: aluminum platform + MK2A heated bed
XYZ Rods: Wear-resistant, stainless steel
Stepper Motors: 1.8° step angle with 1/16 micro-stepping
Physical structure: Reprap
Machine size: 450x380x435mm
Shipping box: 520 x 420 x 230 mm
Net weight: 7.2 kg
Shipping weight: 11.5kg
